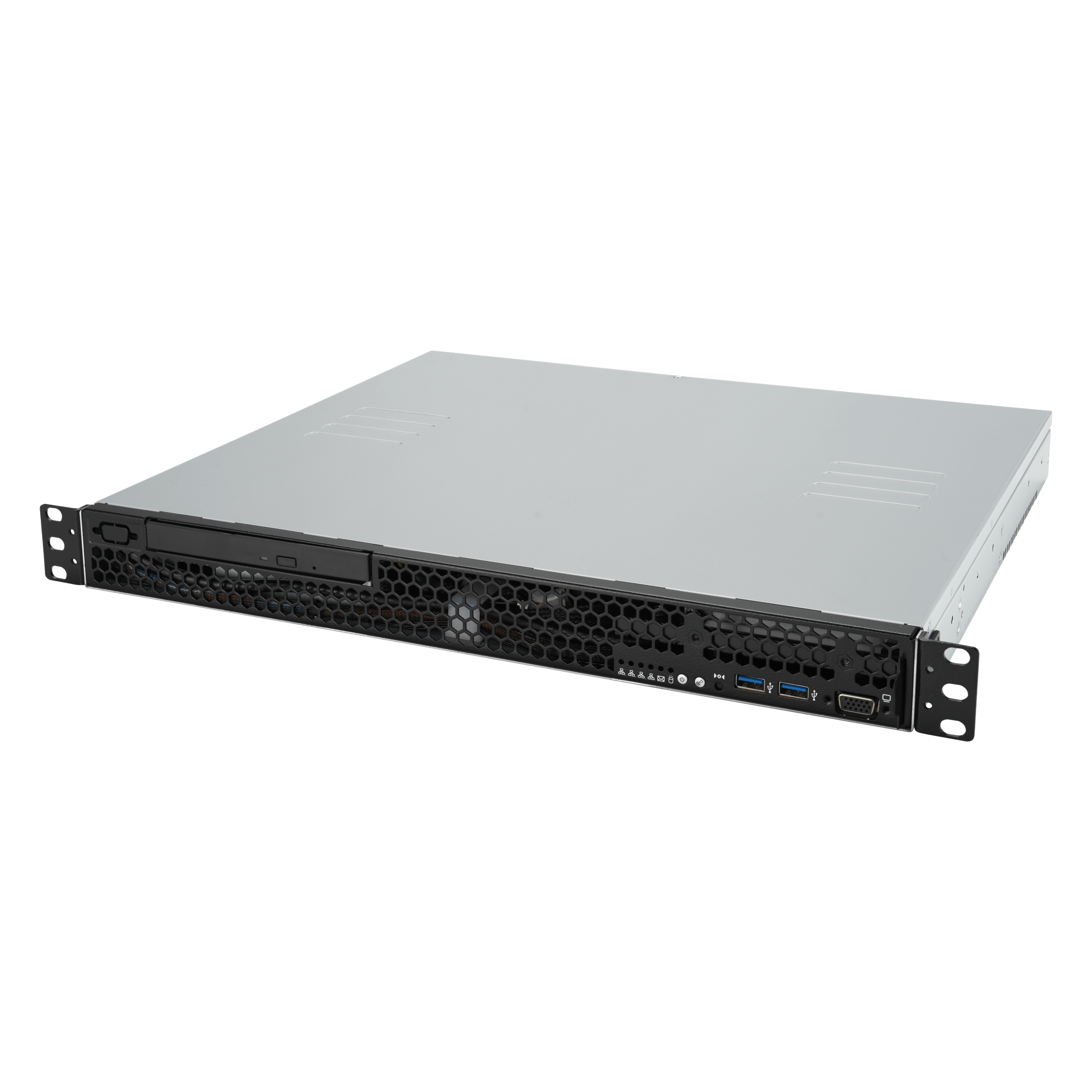

RS100-E11-PI2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 | Intel® Xeon® E-2300 1U short-depth server with four DIMM, one M.2, two PCIe 4.0 slots, two NVMe, dual LAN , Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM |
製品仕様
| 対応/搭載CPU | 1 x Socket LGA1200 Intel® Xeon® processor E-2300 family |
|---|---|
| Generation | E11 |
| チップセット | Intel® C252 Chipset |
| メインメモリ | Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 3200/2933/2666 UDIMM Memory Size : 32GB, 16GB, 8GB, 4GB UDIMM * Refer to support page for more information |
| 拡張スロット | Up to 2 slots: 1 x PCIe x16 (Gen4 x16 link) 1 x PCIe x8 (avaialble only for NVMe riser) Proprietary Slot (R/A): Option for Intel X710 10G LAN card |
| ストレージ機能 | SATA Controller : Intel® C252 Chipset 2 x Internal 3.5” HDD Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) |
| ドライブベイ | with ODD: up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" (optional NVMe) disk bay Without ODD: up to 2 x3.5" disk bay or option 1x3.5"+4x2.5“(optional 2 NVMe) disk bay support1 x M.2 (up to type 2280, PCIe 3.0 x4) |
| 5インチベイ | 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD-ROM |
| ネットワーク機能 | 2 x Intel® I210AT + 1 x Mgmt LAN |
| グラフィック | Aspeed AST2600 with 64MB VRAM |
| Multi-GPU Support | Please find the latest GPU support from https://servers.asus.com/support/gpu |
| 前面インターフェース | 1 x VGA port* 2 x USB 3.2 Gen1 ports *Must support by ASMB10 |
| 後面インターフェース | 2 x USB 3.2 Gen 2 ports 1 x VGA port * 1 x HDMI port from CPU 1 x COM port 2 x RJ-45 ports 1 x RJ-45 ports (One for ASMB10-iKVM)(Optional) *Must support by ASMB10 |
| Switch/LED | Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-2 LED |
| 対応OS | Please find the latest OS support from https://servers.asus.com/support/os |
| 管理マネージメントソリューション | ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet |
| 取得規格 | BSMI, CE, FCC(Class A) |
| サイズ | 380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" |
| Form Factor | 1U |
| 質量 | Net Weight: 7.5 Kg Gross Weight: 11.72 Kg |
| 電源仕様 | Single 250W 80 PLUS Gold Single 350W 80 PLUS Gold |
| 動作環境 | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
| Note | * 1 x M.2 (NGFF 22110/2280/2260/2242) PCIE or SATA signal, gray SATA port will be disabled, when M.2 is used with SATA signal. |
