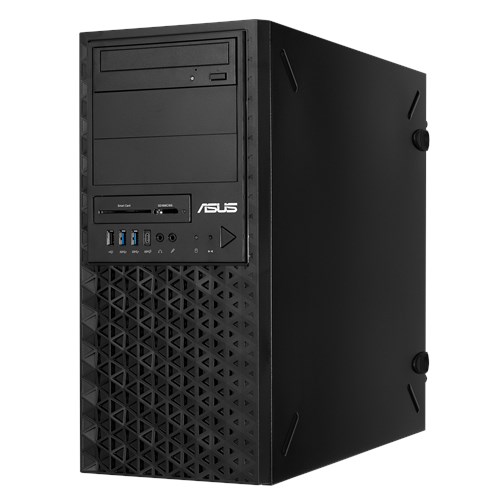

Pro E500 G7
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | 1 |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 | インテル® Xeon® W-1300プロセッサー搭載エッセンシャルワークステーション、 128GB ECCメモリー、デュアル2.5GbE LAN、デュアルM.2、最大3台のディスプレイに対応、 デュアルスロットグラフィックスカード、USB 3.2 Gen2x2、ASUS Control Center |
製品仕様
| OS | Windows 10 Pro - ASUS recommends Windows 11 Pro for business. Windows 10 Home - ASUS recommends Windows 11 Pro for business. |
|---|---|
| 対応/搭載CPU | 1 x Socket LGA1200 Intel® Xeon® W-1300 Processors The 11th generation Intel® Core™ i9/i7/i5/i3 processors |
| チップセット | Intel® W580 Chipset |
| メインメモリ | Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : Dual Channel DDR4 3200/2933 non ECC and with ECC Memory Size : * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| 拡張スロット | Total: 5 Location-1: PCIe x16 slots (Gen4 x16/x8 link, FH, FL) Location-2: PCIe x1 slots (Gen3 x1 link, FH, FL) Location-3: PCIe x16 slots (Gen4 x0/x8 link, FH, FL) Location-5: PCIe x16 slots (Gen4 x4 link, FH, FL)* Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL) * the bandwidth of PCIe link is shared with M.2_2 |
| ストレージ機能 | Storage Controller : Intel® W580 Chipset 8 x SATA3 6Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) 1 x M.2_1 socket3, up to 2280 type (SATA mode & PCIe Gen3 x4 link) *2 1 x M.2_2 socket3, up to 22110 type (PCIe Gen4 x4 link) *3 |
| 記憶装置 | 2 x internal 5.25” Drive bays 3 x internal 3.5” Drive bays 1 x Internal 2.5" Drive bay |
| ベイ | 2 x 5.25" media bays (Options: No ODD/DVD-RW) |
| ネットワーク機能 | 2 x Intel® I225-LM 2.5GbE LAN |
| 前面インターフェース | 1 x USB 3.2 Gen2x2 port 2 x USB 3.2 Gen1 ports 1 x USB 2.0 port 1 x Headphone port 1 x Microphone port |
| 背面インターフェース | 2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C) 4 x USB 3.2 Gen1 ports 1 x HDMI 1 x DisplayPort 1 x DVI-D 1 x VGA 2 x LAN ports (RJ45) 1 x 7.1-channel Audio I/O ports (5+1 Audio jacks) |
| 管理マネージメントソリューション | ASUS Control Center Enterprise (Optional) |
| 企業コンプライアンス | BSMI, CE, FCC(Class B), Energy Star |
| サイズ | 423mm x 190mm x 435mm 16.7" x 7.48" x 17.1" |
| 質量 | Net Weight : 9.9 KG Gross Weight : 12.1 KG |
| 電源仕様 | 300W Bronze ATX Power Supply (100-127/220-240Vac, 6-3A, 50-60Hz, Class I) 550W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50-60Hz,) 750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz) |
| 動作環境 | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| 別売りオプション | Smart Card Reader Anti-Virus CD pack OS DVD-ROM Keyboard and mouse Print port cable |
| その他 | *1 PCIe Bandwidth is shared between M.2 socket and PCIex1. SATA Bandwidth is shared between M.2 socket and SATA port. *Intel® vPro™ support *2 SATA Bandwidth is shared with 1 SATA port *3 PCIe Bandwidth is shared with PCIe x16_3 |
