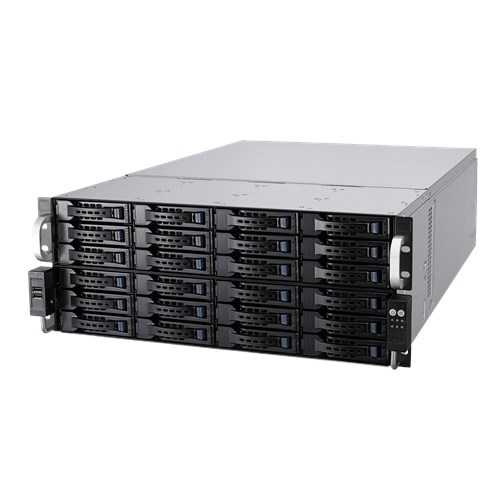

RS540-E9-RS36-E
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 | Double-sided high-capacity 4U storage server with support for up to 36 drives |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information *Please refer to overview for details UPI (10.4 GT/s) |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C621 Chipset |
| Memory |
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | 2 x PCIe x16 (Gen3 x16 link), LP, HL(CPU1: Slot 6;CPU2:Slot 1) 4 x PCIe x8 (Gen3 x8 link), LP, HL(CPU2: slot 2-5) 1 x OCP 2.0 Mezzanine (Gen3 x16 link)(CPU1: MezzPCIE1-2) |
| Storage |
SATA Controller : Intel® C621 11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector) 2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card |
| Drive Bays | 24 x Front Hot-Swap 3.5â/ 2.5" Storage Bays(BP w/Expander) 12 x Rear Hot-Swap 3.5â/ 2.5" Storage Bays(BP w/Expander) 2 x Hot-Swap 2.5â Storage Bays(Rear) 2 x M.2(2280/2260/2242)(Support SATA/PCIe M.2,SATA/PCIe RAID) |
| Networking | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports |
| Rear I/O Ports | 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED | Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x HDD LED 1 x Location LED |
| OS Support | Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html |
| Management Solution | ASUS Control Center Enterprise (Optional) |
| Regulatory Compliance | CCC, CE, FCC(Class A) |
| Dimensions | 615mm x 447mm x 176mm(4U) 24.21" x 17.6" x 6.92" |
| Form Factor | 4U |
| Weight | Net Weight : 27.73KG Gross Weight : 36.1KG |
| Power Supply | 1+1 Redundant 800W 80 PLUS Platinum Power Supply (for 85W CPU and DDR4 up to 32G/pcs; HDD up to 10W/pcs) Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class I 1600W 80 PLUS Platinum Power Supply(CPU up to 150W) Rating: 100-127V/200-240Vac, 13A/9.5A, 50-60Hz, Class I |
| Environment | Operation temperature: 10°C~35°C Non operation temperature: -40°C~70°C Non operation humidity: 20%~90%(Non condensing) |
