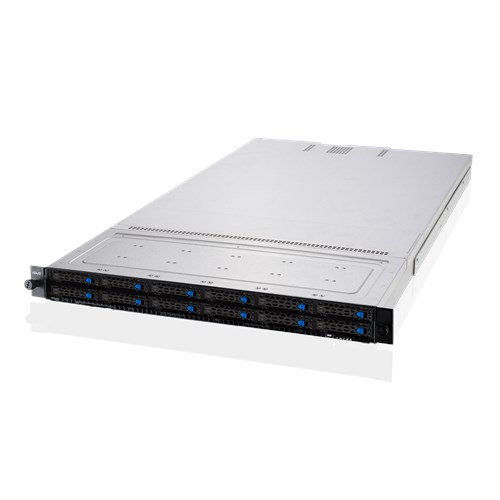

RS700A-E11-RS12U
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 2 |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 | AMD EPYC™ 7003 1Uデュアルソケットサーバー（最大32枚のDIMM、1枚のデュアルスロットGPU、12枚のNVMe、3本のPCIe 4.0スロット、OCP 3.0、M.2およびASMB10-iKVMをサポート |
AMD第3世代EPYC 7003シリーズについて
製品仕様
| 対応/搭載CPU | 2 x Socket SP3 (LGA 4094) AMD EPYC™ 7003 Series |
|---|---|
| Generation | E11 |
| メインメモリ | Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU) Capacity : Maximum up to 4096GB per socket Memory Type : Dual Channel DDR4 3200/2933 RDIMM Dual Channel DDR4 3200/2933 LRDIMM Dual Channel DDR4 3200/2933 LR-DIMM 3DS non ECC Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB LRDIMM 256GB, 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information |
| 拡張スロット | Up to 3 x Expansion slots + 1 x Internal PIKE slot 1 x PCIe Gen4 x16, FHFL (CPU1) 1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2) 1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2) *Installing GPU cards will occupied expansion slots. |
| Graphic Card | Please refer to GPU support list |
| ストレージ機能 | Storage Controller : 12 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link) 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Broadcom MegaRAID 9560-16i (Optional) |
| ドライブベイ | 12 x 2.5" hot-swap drive bays (12 x NVMe/SATA/SAS*) 2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2) *must with PIKE/RAID card |
| 搭載ビデオカード | 8 |
| ネットワーク機能 | Option 1 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN or Option 2 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN or None x + 1 x Mgmt LAN |
| グラフィックス機能 | Aspeed AST2600 with 64MB VRAM |
| マルチGPU対応 | Please find the latest GPU support from https://servers.asus.com/support/gpu |
| 後面インターフェース | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 1 x OCP3.0 port (Please remember to insert OCP3.0 Board) |
| Switch/LED | Front Switch/LED: 1 x Power switch (w/LED) 1 x Reset Switch 1 x Location Switch (w/LED) 1 x HDD Access LED 1 x Message LED LAN 1-4 LED (on NIC Module) Rear Switch/LED: 1 x Power switch w/LED 1 x Port 80 LED(Q-Code) 1 x Location Switch w/LED 1 x Message LED |
| 対応OS | Please find the latest OS support from https://servers.asus.com/support/os |
| 管理マネージメントソリューション | On-Board ASMB10-iKVM for KVM-over-IP ASUS Control Center Enterprise (Optional) |
| 企業コンプライアンス | BSMI, CE, FCC(Class A) |
| サイズ | 842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73") |
| フォームファクター（サイズW×D） | 1U |
| 質量 | Net Weight : 18.85KG Gross Weight : 23.89KG |
| 電源仕様 | 1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China) *1600W RPSU is required while choosing GPU SKU |
| 動作環境 | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing) |
| 別売りオプション | Standard Cooling Solution or Water Cooling Solution |
| その他 | *If only 1 CPU is installed, some functions might be not available. * SAS support only from SAS HBA/RAID Card |
