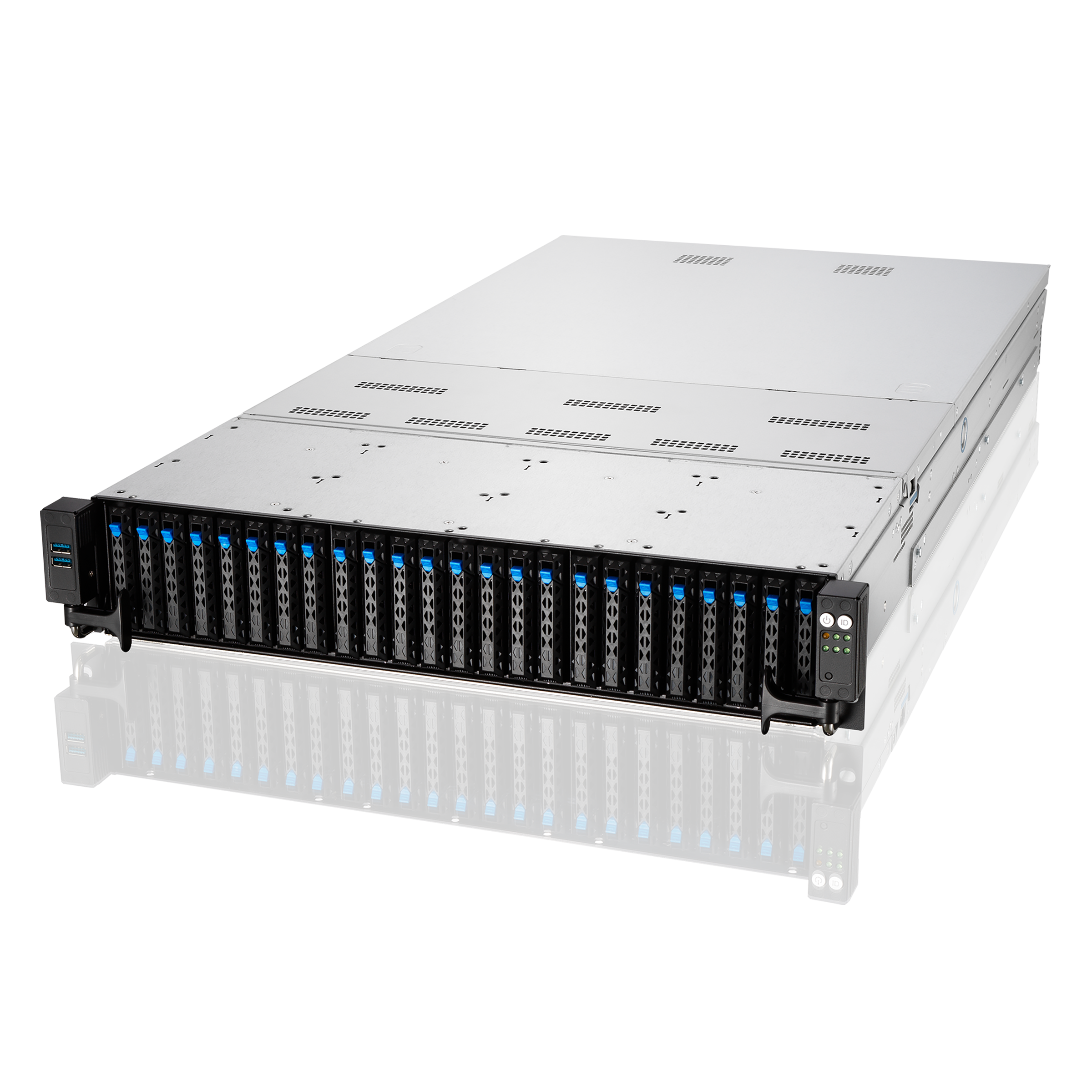

RS520A-E11-RS24U
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 | 最大32個のDIMM、1個のデュアルスロットGPU、4個のNVMe、4個のPCIeスロット、1個のOPC 3.0、1個のM.2、およびASUS ASMB10-iKVMをサポートする1Uデュアルソケットサーバー搭載の第3世代IntelXeonスケーラブルプロセッサ |
AMD第3世代EPYC 7003シリーズについて
製品仕様
| 対応/搭載CPU | 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology 1 x Socket SP3 (LGA 4094) Option 1 |
|---|---|
| Generation | E11 |
| メインメモリ | 16 (8-channel) 16 (8-channel per CPU, 8 DIMM per CPU) Maximum up to 2048GB RDIMM Total Slots : Capacity : Maximum up to 4096GB RDIMM DDR43200/2933RDIMM DDR43200/2933LRDIMM DDR43200/2933LR-DIMM 3DS 128GB, 64GB, 32GB, 16GB RDIMM Dual ChannelDDR43200/2933RDIMM Dual Channel3200/2933 Dual Channel3200/2933non ECC 128GB, 64GB LRDIMM 256GB, 128GB, 64GB LR-DIMM 3DS Capacity : Maximum up to 2048GB RDIMM 64GB, 32GB, 16GB RDIMM Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Memory Type : Memory Size : * Refer to support page for more information |
| 拡張スロット | 2 x PCIe x16 slot(Gen4 x16 link, FHFL) or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL) 1 x PCIe x16 slot(Gen4 x8 link, LP) 1 x OCP 3.0 Mezzanine slot 2 x PCIe x16 slot(Gen4 x16 link, FHFL)(CPU1) or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)(CPU1) 1 x PCIe x16 slot(Gen4 x8 link, LP)(CPU1) 1 x OCP 3.0 Mezzanine slot(CPU1) 2 x PCIe Gen4 x16, FHFL or 4 x PCIe Gen4 x8, FHFL 1 x PCIe Gen4 x8, LP 1 x OCP3.0 |
| ストレージ機能 | 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen4 x4 link) Storage Controller : 12 x SATA3 6Gb/s ports CPU Integrated ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| ドライブベイ | 24 x 2.5” hot-swap drive bays(24x NVMe or 16x NVMe + 8x SATA/SAS or 12x NVMe + 12x SATA/SAS) 2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2) *SAS support only from SAS HBA/RAID Card *If supporting 24x NVMe, only 1x PCIe Gen4 x8 could use. 24 x 2.5” hot-swap drive bays(24x NVMe or 16x NVMe + 8x SATA/SAS or 12x NVMe + 12x SATA/SAS) 2 x M.2 (support SATA/PCIe x2 M.2) (up to 22110) optional (rear bays): 2 x 2.5" hot-swap drive bays(2x NVMe/SATA) (will reduce 1 x PCIe Gen4 x8 slot) *SAS support only from SAS HBA/RAID Card *If supporting 24x NVMe, only 1x PCIe Gen4 x8 could use. 2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s & PCIe® Gen4 x4 link) 24 x 2.5” hot-swap drive bays(24x NVMe or 16x NVMe + 8x SATA/SAS or 12x NVMe + 12x SATA/SAS) 2 x M.2 (support SATA/PCIe x2 M.2) (up to 22110) optional (rear bays): 2 x 2.5" hot-swap drive bays(2x NVMe/SATA) (will reduce 1 x PCIe Gen4 x8 slot) *SAS support only from SAS HBA/RAID Card *If supporting 24x NVMe, only 1x PCIe Gen4 x8 could use. |
| 搭載ビデオカード | 4 (if choose redundant fan, total:8) |
| ネットワーク機能 | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| グラフィックス機能 | Aspeed AST2600 with 64MB VRAM |
| 前面インターフェース | 2 x USB 3.2 Gen1 ports |
| 後面インターフェース | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN ports 1 x OCP3.0 port 2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) |
| Switch/LED | Front Switch/LED:1 x Power switch (w/LED) 1 x Reset Switch 1 x Location Switch (w/LED) 1 x HDD Access LED 1 x Message LED LAN 1-2 LED Rear Switch/LED:1 x Power switch w/LED 1 x Port 80 LED(Q-Code) 1 x Location Switch w/LED 1 x Message LED Front Switch/LED:1 x Power switch (w/LED) 1 x Reset Switch 1 x Location Switch (w/LED) 1 x HDD Access LED 1 x Message LED LAN 1-4 LED (on NIC Module) Rear Switch/LED:1 x Power switch w/LED 1 x Port 80 LED(Q-Code) 1 x Location Switch w/LED 1 x Message LED |
| 対応OS | Please find the latest OS support from https://servers.asus.com/support/os |
| 管理マネージメントソリューション | ASUS Control Center Enterprise (Optional) On-Board ASMB10-iKVM for KVM-over-IP |
| 企業コンプライアンス | BSMI, CE, RCM, FCC(Class A) BSMI, CE, FCC(Class A) |
| サイズ | 840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47") |
| フォームファクター（サイズW×D） | 2U |
| 質量 | Net Weight : 19.15KG Gross Weight : 28.74KG Net Weight : 25.57KG Gross Weight : 35.16KG Net Weight : 39.3KG Gross Weight : 49.6KG |
| 電源仕様 | 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I 1+1 Redundant 850W 80 PLUS Titanium Power Supply Rating: 100-127 / 200-240Vac, 11A / 5A (for each inlet), 47-63Hz or 240Vdc, 4A 1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A 240Vdc Only for China 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I 1+1 Redundant 850W 80 PLUS Titanium Power Supply Rating: 100-127 / 200-240Vac, 11A / 5A (for each inlet), 47-63Hz or 240Vdc, 4A 1+1 Redundant 1200W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A 240Vdc Only for China 1+1 Redundant 800W/1200W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China) |
| 動作環境 | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing) |
| CPUクーラー | 1 |
