製品情報

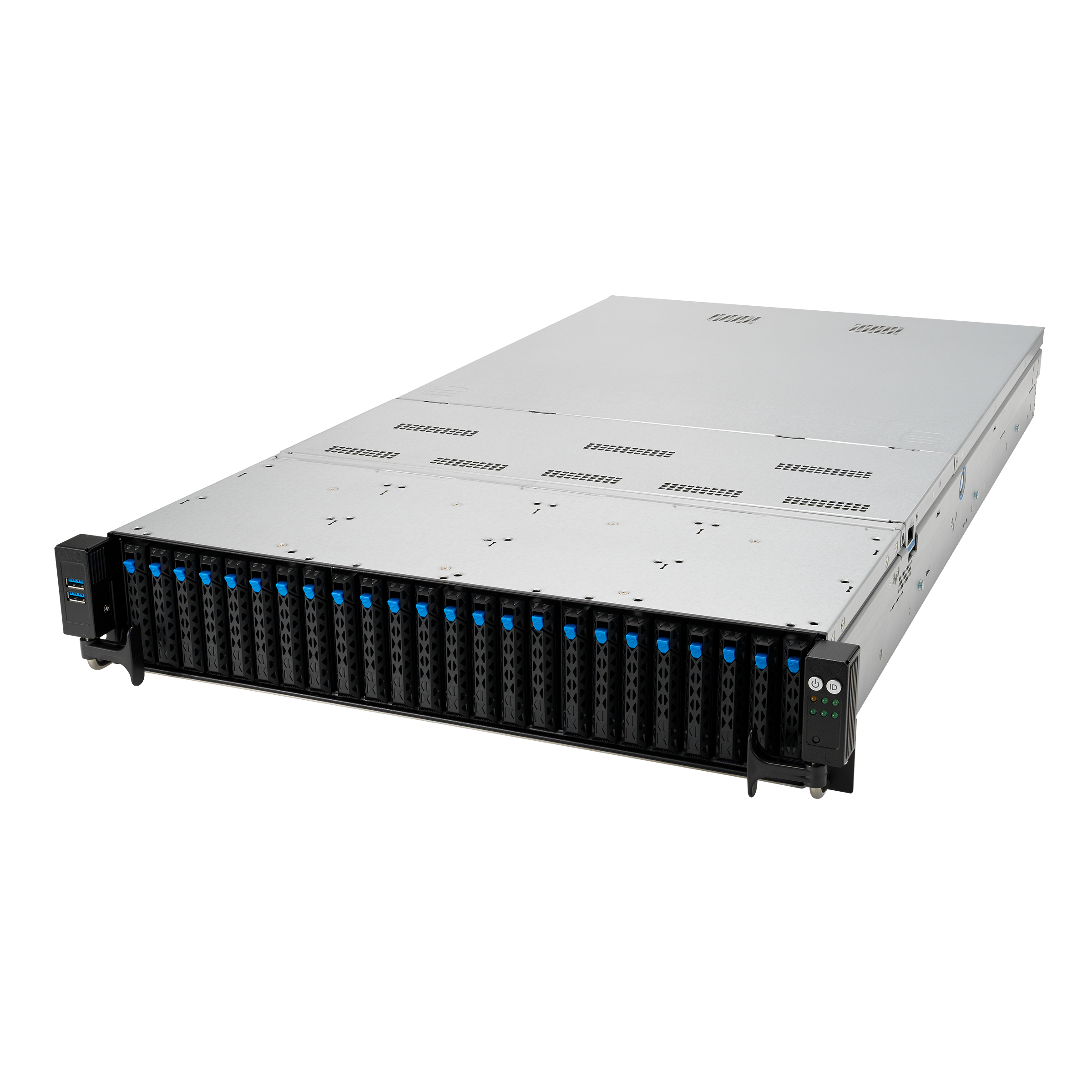

RS720-E10-RS24U

製品種別 サーバ
CPUソケット数 2
CPU
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明 第3世代Intel Xeon Scalableプロセッサ搭載、最大32枚のDIMM、24枚のNVMe、9本のPCIe 4.0スロット、OCP 3.0、デュアルM.2、ASUS ASMB10-iKVMをサポートした2Uデュアルソケットサーバー

第3世代 Intel Xeon Scalable プロセッサーについて


製品仕様

対応/搭載CPU 2 x Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable Processors Family(270w)
Generation E10
チップセット Intel® C621A Chipset
メインメモリ Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity :
Maximum up to 6TB per socket
Memory Type :
DDR4 3200/2933 RDIMM
DDR4 3200/2933 LRDIMM
DDR4 3200/2933 LR-DIMM 3DS
3200/2933
Memory Size :
64GB, 32GB, 16GB, 8GB RDIMM
256GB, 128GB, 64GB RDIMM 3DS
128GB RDIMM 3DS/LR-DIMM 3DS
512GB, 256GB, 128GBIntel® Optane™ DC Persistent Memory
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
拡張スロット Up to 9 x Expansion slots
2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)
1 x PCIe Gen4 x8, FHFL (CPU1 x1)
1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)
4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)

*Installing GPU cards will occupied expansion slots.
ストレージ機能 Storage Controller :
Intel C621A
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Broadcom MegaRAID 9560-16i (Optional)
ドライブベイ Front bays:
24 x 2.5" hot-swap bays (12x NVMe + 12x SATA/SAS* or 12x NVMe + 12x NVMe/SATA/SAS*)

2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link)

*SAS support only from SAS HBA/RAID card
**Support tri-mode card
搭載ビデオカード 4
ネットワーク機能 Option 1
1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
or
Option 2
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
or
None x + 1 x Mgmt LAN
グラフィックス機能 Aspeed AST2600 with 64MB VRAM
Multi-GPU Support Please find the latest GPU support from https://servers.asus.com/support/gpu
前面インターフェース 2 x USB 3.2 Gen1 ports
後面インターフェース 2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
4/2 x NIC ports*

* The number of NIC ports available depends on the LAN Controller card installed.
Switch/LED Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED
* LAN3-4 for Mezzazine card use

Rear Switch/LED:
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Location LED
対応OS Please find the latest OS support from https://servers.asus.com/support/os
管理マネージメントソリューション ASUS Control Center(Classic) On-Board ASMB10-iKVM for KVM-over-IP
企業コンプライアンス BSMI, CE, FCC(Class A)
サイズ 840mm x 449mm x 88mm(2U) 33.07" x 17.68" x 3.46"
フォームファクター(サイズW×D) 2U
質量 Net Weight :21.69KG
電源仕様 1+1 Redundant 2400W 80 PLUS Titanium Power Supply
Rating: 100-127Vac/ 200-240Vac, 13.8A/15A (for each inlet), 50/60Hz, Class I

1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet), 50-60Hz, Class I
動作環境 Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing)
その他 *If only 1 CPU is installed, some functions might be not available.
*SAS support only from SAS HBA/RAID Card
*If PCIe expansion slot 3 choosing OCP3.0 option, slot 4 will be limited to support PIKE card only
