生産終了

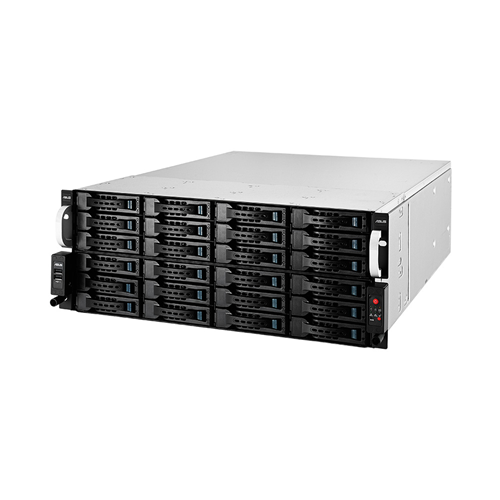

RS740-E7-RS24-EG
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (150W) *1 Intel® Xeon® processor E5-2600 v2 product family (150W) *1 QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Generation | E7 |
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM Memory Type : DDR3 1866/1333/1066 LRDIMM* DDR3 1866/1600/1333/1066/800 RDIMM* DDR3 1866/1600/1333/1066 UDIMM * Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Slot1: 1 x PCI-E x8 (x4 Gen2 link) Slot2: 1 x PCI-E x16 (x16 Gen3 link) Slot3: 1 x PCI-E x8 (x8 Gen3 link) Slot4: 1 x PCI-E x16 (x16 Gen3 link) Slot6: 1 x PCI-E x16 (x16 Gen3 link) 1 x PIKE Slot for Stroage Enhancement |
| Storage | SAS Controller : ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card *2 ASUS PIKE 2208 8-port SAS 6G HW RAID card *2 ASUS PIKE 2308 8-port SAS 6G RAID card *2 |
| HDD Bays | 24 x Hot-swap 3.5" HDD Bays* 2 x Hot-Swap 2.5” SSD Bays (Rear) (*Support 3.5" SATA3 or 7200RPM SAS2 HDD) |
| Networking | 1 x Dual port Broadcom 10GbE 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 3 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SFP+ ports 1 x COM port |
| OS Support | CentOS 5.9/6.4 64-bit CentOS 5.8/6.3 64-bit Citrix XenServer 6.0 Windows® Server 2012 Windows® Server 2008 Enterprise R2 SP1 64-bit Windows® 8 32/64-bit RedHat® Enterprise Linux AS5.8/6.3 64-bit RedHat® Enterprise Linux AS5.9/6.4 64-bit Ubuntu Desktop 12.04 VMWare ESXi 5.1 U1 | ESXi 5.1 | ESXi 5.0 U2 | ESXi 5.0 U1 | ESXi 5.0 *(Subject to change without any notice) *3 |
| Management Solution | ASWM Enterprise Default 1 x ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 615mm x 448mm x 175mm |
| Form Factor | 4U |
| Weight | 25Kg |
| Power Supply | 1+1 Redundant 800W 80PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,9.9A/4.79A ,47-63Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Note | *1 >135W support under 25 °C environment *2 Default with PIKE 2108-32PD, or PIKE 2208, or PIKE 2308 *3 Virtualization solution with RAID function, ASUS suggests to use PIKE RAID card * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest momory AVL update |
パーツ仕様
| Chassis | ASUS R40C 4U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z9PE-D16-10G/Dual Server board | ||||
| HDD Backplane | 1 x RS740-E7-RS24-EG SAS/SATA Backplane (BP2LX-R12PD) (90SC0440-M00000) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-R20A) (60SC00V0-SC0A02) | ||||
| USB Board | 1 x USB Board (USB-R20A) (60SC00U0-SC0A01) |
||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R40B) (60SC0450-SC0A01) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090800) | ||||
| Power Supply Unit | 1 x 800W Redundant Power Supply (0A100-00080100) (2 x Power Supply Module default for North America) |
||||
| HDD Tray | 24 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1) | ||||
| Fan | 2 x System Fans (120mm x 38mm) (13070-00560000) 2 x Rear System Fans (80mm x 38mm) (13G074154010) |
||||
| Air Duct/Mylar | 1 x Air Duct (13GS1700P180-1) | ||||
| Mounting Rails | 1 x Friction rail kit (13SV0006AM0501) | ||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L:500MM(14G000611200) 1 x USB CABLE 2*4 TO 2*5,L=850MM (14G000509430) 2 x SATA 7P*4 TO MINI SAS CABLE (14001-00640000) 1 x FPB CBL 2*8 TO 2*10+1*6,950MM(14003-00110100) 2 x POWER 8P TO TERMINAL, L:250MM (14001-00190400) 2 x W.H CABLE 4P TO 4P, L:150MM(14G030011552) 2 x FAN CABLE 4P/M TO 4P/F, L100MM(14G000015410) 1 x SATA CABLE 7P*2 TO 7P*2,L850MM (14001-00720300) 1 x COM CABLE 9P L:400MM (14001-00400200) |
