生産終了

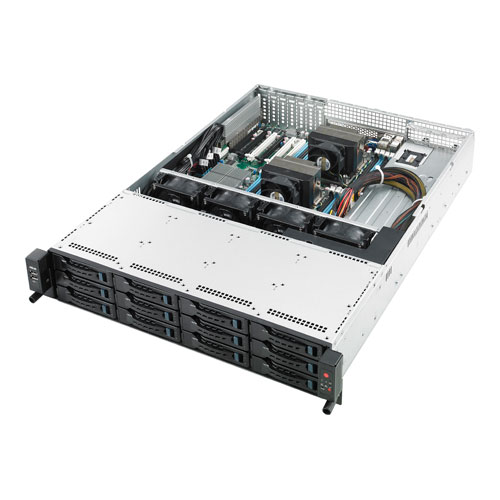

RS720-E7/RS12-E
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (150W) Intel® Xeon® processor E5-2600 v2 product family (150W) QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM Memory Type : DDR3 1866*/1333/1066/800 LRDIMM* DDR3 1866*/1600/1333/1066/800 RDIMM* DDR3 1866*/1600/1333/1066 UDIMM with ECC* Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Low-profile 4* PCI-E x16 (Gen3 x16 Link) + 1*PCI-E x16 (Gen3 x8 Link) Or 3* PCI-E x16 (Gen3 x16 Link) + 3*PCI-E x16 (Gen3 x8 Link) 1* PIKE Slot for Stroage Enhancement |
| Storage | SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) |
| HDD Bays | 12 * Hot-swap 3.5" "HDD Bays |
| Networking | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 5 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | CentOS 5.6 32/64-bit Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit Oracle Linux 6.5 Oracle Linux 6.4 Oracle Linux 6.3 Oracle Linux 5.9 Oracle Linux 5.10 Oracle VM 3.2 VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | default 1 x ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 615mm * 444mm * 87mm |
| Form Factor | 2U |
| Weight | 23Kg |
| Power Supply | 770W (80+) (Gold level) 1+1 Redundant Power Supply (following different configuration by region) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x RS720-E7 User's Guide 1 x ASUS ASWM Enterprise User's Guide (15060-01800100) 1 x Bag of Screws 2 x AC Power Cable 1 x RS720-E7 Support DVD (15091-02P00000) 1 x ASWM ENTERPRISE DVD 1 x ASMB6 SERIES DVD (15091-01H00000) 1 x ASMB6 User's Guide (15060-01U00000) |
| Optional Items | Second 770W Redundant Power Supply Module (04G184004921) Heatsink for CPU 135W upgrade kit (13071-00090100) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T) ASUS PIKE 2208 H/W RAID card (90SKC000-M00AN0) ASUS PIKE 2308 RAID card (90SKC000-M08AN0) |
| Note | *1 >115W support with optional thermal upgrade kit * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest momory AVL update |
パーツ仕様
| Chassis | ASUS R20D 2U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z9PE-D16 Server board | ||||
| HDD Backplane | 1 x RS720-E7/RS12-E SAS/SATA Backplane (BP12EX-R20C) (90-C1SEQ0-00P0T) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-R20A) (60SC00V0-SC0A02) | ||||
| USB Board | 1 x USB Board (USB-R20A) (60SC00U0-SC0A01) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R20A/E7) (90-C1SDH5-10P0T) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090800) | ||||
| Power Supply Unit | 1 x 770W Redundant Power Supply (04G184004921) (2 x Power Supply Module default for North America) |
||||
| HDD Tray | 12 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) | ||||
| Fan | 4 x System Fans (80mm x 38mm) (13G074154010) | ||||
| Fan Holder | 4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1) | ||||
| Air Duct/Mylar | 1 x Air Duct (13GS1700P180-1) | ||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) | ||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L=500mm (14G000611200) 1 x USB CABLE 2*4 TO 2*5,L=850mm (14G000509430) 1 x POWER CABLE 8P TO 8P,L=70mm (14G000610110) 2 x POWER CABLE 8P TO 8P,L=420mm (14G000610120) 1 x POWER CABLE 24P TO 24P,L=460mm (14G000603750) 4 x SATA 7P*2 TO 7P*2,L=400mm (14G000128040) 4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552) 1 x FPB CBL 2*8 TO 2*10+1*L=6,950mm (14003-00110000) |
