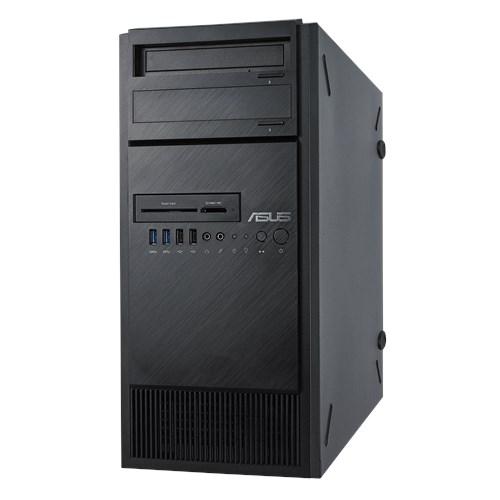

TS100-E10-PI4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel® Xeon® processor E-2100 family(95W) Intel® Xeon® processor E-2200 family(95W) The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor *Refer to support page for more information |
|---|---|
| Generation | E10 |
| Core Logic | Intel® C242 Chipset |
| Memory |
Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB * Refer to support page for more information |
| Expansion Slots | 1 x PCI-E x16 (Gen3 x16 Link) 1 x PCI-E x8 (Gen3 x4 Link) 2 x PCI |
| Storage |
SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports + 2 x M.2 connector *1 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card |
| Drive Bays | 3 x Internal 3.5â (or 2 x 2.5â optional cage) drive bays* 1 x Internal 2.5" drive bay 1 x Optional internal 5.25â to 3.5â/2.5â drive cage * Support only 1 drive when add-on card over 9.5â installed on x16 link slot 2 x M.2 (NGFF 22110/2280/2260/2242. One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.) |
| Auxiliary Storage FDD/CD/DVD | 2 x 5.25" media bays Options: No Device / DVD-RW / DVD ROM |
| Networking | 1 x Intel® I210AT 1 x i219-LM |
| Graphic | Aspeed AST2510 with 64MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x Headphone port 1 x Microphone port |
| Rear I/O Ports | 2 x USB 3.1 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA Port (onboard Aspeed AST2510) 2 x LAN Ports 3 x Audio Jacks (onboard Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC) 1 x PS/2 Keyboard/ Mouse Port |
| Switch/LED | Front Switch/LED: 1 x Power switch 1 x Power LED 1 x Reset switch 1 x HDD Access LED |
| Management Solution | ASUS Control Center |
| Dimensions | 423mm x 190mm x 435mm 16.65" x 7.48" x 17.1" |
| Form Factor | Tower |
| Power Supply | 500W 80PLUS Single Power Supply, Gold Rating: 100-240Vac, 7-3.5A, 50/60Hz, Class I 300W 80PLUS Single Power Supply, Bronze Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I |
| Note | *1 Intel® C242: 6 x SATA 6Gb/s ports with 2 x M.2 (NGFF 22110/2280/2260/2242, gray SATA port will disable when M.2 is SATA signal)* Intel® RSTe (Windows & Linux) (Support software RAID 0, 1, 10 & 5) * One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only. |
