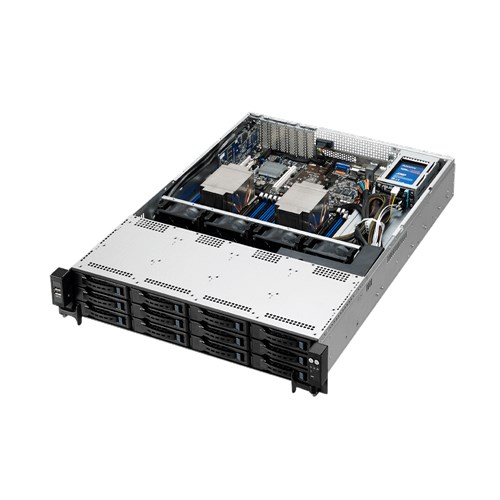

RS520-E8-RS12-E

製品種別 サーバ
CPU


筐体サイズ 2U
電源仕様
用途/特長
製品説明

製品仕様

Processor / System Bus 2 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-2600 v4 product family (145W) *
Intel® Xeon® processor E5-2600 v3 product family(145W)*
QPI 6.4 / 8.0 / 9.6 GT/s
*Refer to support page for more information
Generation E8
Core Logic Intel® C612 PCH
Memory Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB LRDIMM
Memory Type :
DDR4 2400 /1866*/2133 /1600 RDIMM
DDR4 2400 /1866*/2133 /1600 LRDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots 3 + 1

Low-profile
1 x PCI-E Gen3 x16 (x8 link)
2 x PCI-E Gen3 x8 (x8 link)
1 x OCP Mezzanine (Gen3 x8 link)*

* Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional)
Storage SATA Controller :
Intel® C612
9 x SATA3 6Gb/s ports
1 x M.2 connector
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
HDD Bays 12 x Hot-swap 3.5" Storage Bays
2 x Hot-swap 2.5" Storage Bays
1 x M.2 (NGFF 2242)
Networking 2 x Intel® I210AT + 1 x Mgmt LAN
Graphic Aspeed AST2400 with 32MB VRAM
Front I/O Ports 2 x USB 2.0 ports

Rear I/O Ports 2 x RJ-45 ports
1 x RJ-45 Mgmt LAN port
2 x USB 3.0 ports
1 x VGA port
1 x PS/2 KB/MS port
1 x External Serial Port
1 x Q-Code/Port 80 LED
OS Support Windows® Server 2016
Windows® Server 2012 R2
Windows® Server 2012
Windows® Server 2008 R2
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer

*Subject to change without any notice
Management Solution ASWM Enterprise
On-Board ASMB8-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CE, C-Tick, FCC(Class A)
Dimensions 615mm x 444mm x 88mm
24.21" x 17.48" x 3.46"
Form Factor 2U
Weight Net Weight: 15.08 Kg
Gross Weight: 22.34 Kg
Power Supply 1+1 Redundant 770W 80PLUS Gold Power Supply

Rating: 100-127Vac/200-240Vac,10A/5A ,50-60Hz, Class I
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

パーツ仕様

Chassis ASUS R20D 2U Rackmount Chassis
MB ASUS Z10PR-D16 Server board (EN-0208367)(60SB03V0-SB0A16)
HDD Backplane 1 x SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A03)
Front Panel Board 1 x Front I/O Board (FPB-R20D) (60SC03Z0-SC0B01)
Power Distribution Board 1 x Redundant Power Supply Power Distribution Board (PDB-R20A/E7) (60SC02B0-SC0B03)
CPU Heatsink/ Cooler 2 x CPU Heatsink (13071-00091600)
Power Supply Unit 1 x 770W Redundant Power Supply (0A100-00220100)
HDD Tray 12 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1)
2 x Hot-swap 2.5" SDD trays (13GS120AM021-1)
Fan 4 x System Fans (80mm x 38mm) (13G074154010)
Air Duct/Mylar 1 x Air Duct (13SV0004P03011)
Mounting Rails 1 x Tool-less rail kit (13SV0006AM0811)
Cable 1 x PMBUS CABLE 5P TO 5P L:500MM,(14G000611200)
1 x USB CABLE 2*4 TO 2*5,L=850MM, (14G000509430)
2 x POWER CABLE 8P TO 8P,420MM, (14G000610120)
1 x POWER CABLE 24P TO 24P,460MM, (14G000603750)
4 x W.H CABLE 4P TO 4P, L:150MM, (14G030011552)
1 x FPB CBL 2*8 TO 2*10+1*6,950MM, (14003-00110100)
1 x LAN LED CBL 2*4P TO 1*5P L=900, (14001-00790000)
2 x MINI SAS TO 4 SATA L:820MM,(14011-00050000)
