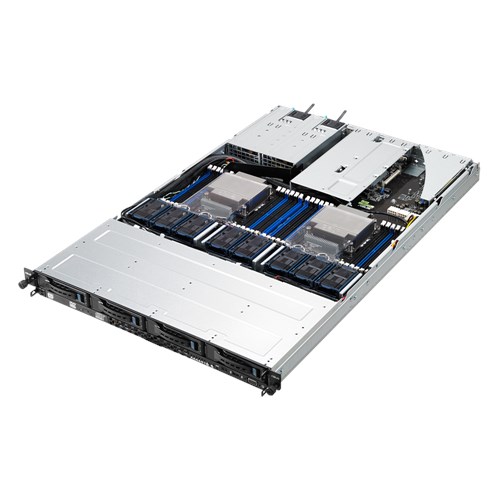

RS700-E8-RS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (145W) * Intel® Xeon® processor E5-2600 v3 product family(145W)* QPI 6.4 / 8.0 / 9.6 GT/s *Refer to support page for more information |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 1536GB LRDIMM Memory Type : DDR4 2400 /1866*/2133 /1600 RDIMM DDR4 2400 /1866*/2133 /1600 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | 2 + 2 1 x PCI-E x16 (Gen3 x16 link), FH, HL 1 x PCI-E x16 (Gen3 x8 link), LP, HL 1 x PCI-E x8 (Gen3 x8 link), proprietary* 1 x OCP Mezzanine (Gen3 x8 link)** * Support for ASUS PIKE II (optional) ** Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional) |
| Storage | SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) |
| HDD Bays | 4 x 3.5" Hot-swap Storage Bays 1 x M.2 (NGFF 2242) |
| Auxiliary Storage FDD/CD/DVD | 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW |
| Networking | 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports 1 x VGA port |
| Rear I/O Ports | 2 x RJ-45 ports 1 x RJ-45 Mgmt LAN port 2 x USB 3.0 ports 1 x Power switch/LED 1 x VGA port 1 x PS/2 KB/MS port 1 x External Serial Port |
| OS Support | Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 686mm x 444mm x 44mm 27" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight: 11.89 Kg Gross Weight: 18.10 Kg |
| Power Supply | 1+1 Redundant 800W 80PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,9.9A/4.79A ,47-63Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | R12D Rackmount Chassis (13GS1E0AM023-1) | ||||
|---|---|---|---|---|---|
| MB | Z10PP-D24 Server board (60SB03U0-SB0A05) | ||||
| HDD Backplane | 1 x BP4LX-R10A (60SC00G1-SC0A01) | ||||
| Front Panel Board | 1 x FPB-R20D (60SC03Z0-SC0B01) | ||||
| Riser Card | 1 x RE16L-R12A (60SC00D0-SC0C01) 1 x RE16LE8R-R12E (60SC05M0-SC0A01) |
||||
| CPU Heatsink/ Cooler | 2 x LGA2011 1U SQUARE HP HS (13071-00091400) | ||||
| Power Supply Unit | 2 x PSU 1U RED. 800W 80+ PLATINUM (0A100-00080500) | ||||
| HDD Tray | 4 x R21A 3-5 HDD MODULE ASSY (13GS1I0AM050-1) | ||||
| HDD Cage | 1 x AR16 35HDD MODULE ASSY (13GS0I0AM112-1) | ||||
| Fan | 8 x RS500-E8-RS4 FAN 4.0*2.8 1.0A (13070-00790000) | ||||
| Fan Holder | 8 x FAN HOUSING (13GS1200P070-1) 8 x FAN DUMMY (13GS0F00P021-1) 16 x RIVET (13G014088000) 16 x SCREW M3.8 *7L(F) B-ZN #2 (13GMCF4W070Z-1) |
||||
| Air Duct/Mylar | 1 x R12D PUMA 24D FANDUCT A (13GS1E00P020-1) 1 x R12D PUMA 24D FANDUCT B (13GS1E00P030-1) |
||||
| Optical Drive | 1 x Slim DVD-RW (17601-00012500) 1 x R10E ODD BEZEL ASSY (13GS1J0AP010-1) |
||||
| Mounting Rails | 1 x Tool-less Rail Kit (13SV0006AM0811) | ||||
| Cable | 1 x USB3.0 180 TO USB2.0 L=650MM (14002-00340000) 1 x POWER CABLE 8P TO 8P,400MM (14001-00260000) 1 x FPB CAB2*8/1*10+1*6+2*10 950MM (14001-00800500) 1 x LAN LED CBL 2*4P TO 1*5P L=900 (14001-00790000) 1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303) 1 x VGA CABLE 2*8 TO 2*8 L=950MM (14019-00010000) 1 x MINI SAS TO 4 SATA L:820MM (14011-00050000) |
