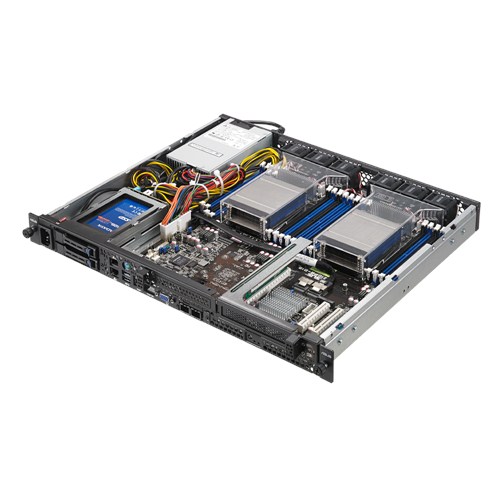

RS400-E8-PS2-F
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (120W) * Intel® Xeon® processor E5-2600 v3 product family(120W)* QPI 6.4 / 8.0 / 9.6 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /2133 /1866*/1600 RDIMM DDR4 2400 /2133 /1866*/1600 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Please refer to ASUS server AVL for the latest update * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | 2 + 1 1 x PCI-E x16 (Gen3 x8 Link), FH, HL 1 x PCI-E x8 (Gen3 x8 Link), FH, HL 1 x OCP Mezzanine (Gen3 x8 link)* * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional) |
| Storage | SATA Controller : Intel® C612 9 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector) 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 10 ) |
| HDD Bays | 2 x Hot-swap 2.5" SSD Bays 1 x M.2 (NGFF 2242) |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port 2 x USB 3.0 ports 1 x VGA port 1 x PS/2 KB/Mouse port |
| Switch/LED | Front Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch/LED 1 x Location LED 1 x Message LED Rear Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 383mm x 444mm x 44mm 15.08" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight: 6.73 Kg Gross Weight: 12.30 Kg |
| Power Supply | Single 500W 80PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,8A/4A,50/60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | ASUS R9D 1U Rackmount Chassis |
||||
|---|---|---|---|---|---|
| MB | ASUS Z10PR-D16 Server board (EN-0208367)(60SB03V0-SB0A16) | ||||
| HDD Backplane | 1 x SAS/SATA Backplane (BP2LX-R12PD) (60SC0440-SC0A01) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-R10E) (60SC0480-SC0A01) |
||||
| Riser Card | 1 x PCI-E Riser Card (RE16LE8R-R10A) (60SC00Q0-SC0D01) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090300) |
||||
| Power Supply Unit | 1 x 500W Single Power Supply (0A100-00140900) |
||||
| HDD Tray | 2 x Hot-swap 2.5" HDD trays (13GS120AM021-1) | ||||
| Fan | 6 x System Fans (40mm x 28mm) (13070-00790000) |
||||
| Air Duct/Mylar | 2 x Air Duct (13SV0041P01011) |
||||
| Mounting Rails | 1 x Tool-less rail kit (13SV0006AM1501) | ||||
| Cable | 1 x MINI SAS TO 4 SATA,L:400MM (14011-00050200) 1 x FPB CBL+LAN34 CBL+1*6,300MM(14004-02570000) |
