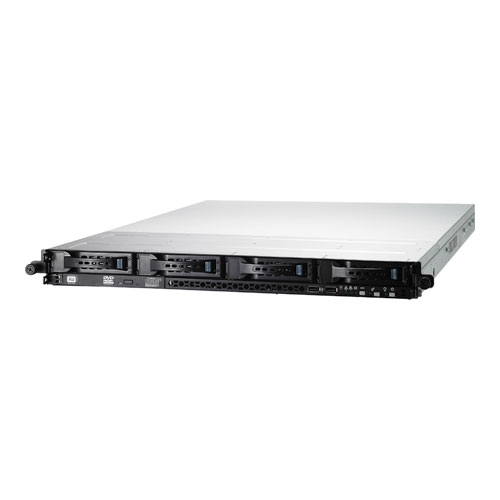

RS500A-E6/PS4

製品種別 サーバ
CPUソケット数
CPU
筐体サイズ 1U
最大GPU数
電源仕様
用途/特長
製品説明

製品仕様

Processor / System Bus 2 x Socket G34 compatible
AMD Opteron™ 6100 series
AMD Opteron™ 6300 series
AMD Opteron™ 6200 series
HyperTransport™ Technology 3.0
6.4 GT/s per link (triple link)
Core Logic AMD SR5650
AMD SP5100
Memory Memory Type :
DDR3 with ECC 800/1600/1066/1333 UDIMM*
Capacity : Maximum up to 256GB RDIMM/Maximum up to 64GB UDIMM
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Memory Size :
2GB, 16GB, 1GB, 4GB, 8GB RDIMM
4GB, 2GB, 1GB UDIMM
Expansion Slots 1 * PCI-E x16 (Gen2 x16 Link) (FH/HL)
Storage SATA Controller :
6 x SATA2 3Gb/s ports
AMD SP5100
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
HDD Bays 4 * Hot-Swap 3.5" HDD Bays
Auxiliary Storage FDD/CD/DVD 1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW
(DVD-RW default for North America)
Networking 2 x Intel® 82574L + 1 x Mgmt LAN
Graphic Aspeed AST2050 with 8MB VRAM
On Board I/O 1 x PS/2 mouse port
3 x RJ-45 ports (One for ASMB4-iKVM)
1 x PS/2 keyboard port
1 x VGA port
1 x External Serial Port
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
OS Support SuSE® Linux Enterprise Server 10 32/64-bit
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit

*Subject to change without any notice
RedHat® Enterprise Linux AS5.0 32/64-bit
Windows® Server 2008 R2
Management Solution Software: ASWM2.0

Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-IP support
Regulatory Compliance CE, FCC(Class A), C-Tick
Dimensions 615mm * 444mm * 43.6mm
Form Factor 1U
Weight 15Kg
Power Supply 500W 80PLUS Gold Single Power Supply
Environment Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x RS500A-E6 User's Guide
1 x ASUS ASWM 2.0 User's Guide
1 x Bag of Screws
1 x AC Power Cable
1 x RS500A-E6 Support DVD (15091-02K00000)
Optional Items ASMB4-iKVM Remote management card (61-C1SD80-01)
(ASMB4 default for North America)
Slim-type Optical Device (17G14113400N)
(DVD-RW default for North America)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
Note * DDR3 1600 can only be supported with AMD Opteron™ 6300/6200 series processor

パーツ仕様

MB KGNE-D16 (80-MSVD30-G0A02)
HDD Backplane 1 x SAS/SATA Backplane (BP4LX-R10A) (60SC00G0-SC0B02)
Front Panel Board 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
Riser Card 1 x PCI-E Riser Card (RE16L-R10A) (60SC00P0-SC0A01)
CPU Heatsink/ Cooler 2 x CPU Heatsink (13G074171010)
Power Supply Unit 1 x 500W Single Power Supply (04G185025550))
HDD Tray 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Fan 6 x System Fans (40mm x 56mm) (13G074152010)
Fan Holder 6 x Fan Holder (13GS1200P070-1)
Air Duct/Mylar 1 x Air Duct (13GS130AP021-1)
Optical Drive 1 x Slim DVD-RW (Optional) (17G14113400N)
(DVD-RW default for North America)
Mounting Rails 1 x Semi-ball Bearing Rail Kit (13GS1600M011-1) or
1 x Friction rail kit (13GS190AM042-1)
(different Rail Kit by region)
Cable 1 x FPB CBL 2*8 TO 2*10+1*6,750mm (14G030042840)
1 x MINI SATA 13P TO 7P+4P,390mm (14G000114510)
1 x USB CABLE 2*4 TO 2*5,L=850mm (14G000509430)
1 x W.H CABLE 8P TO 10P,L=260mm (14G030027204)
