生産終了

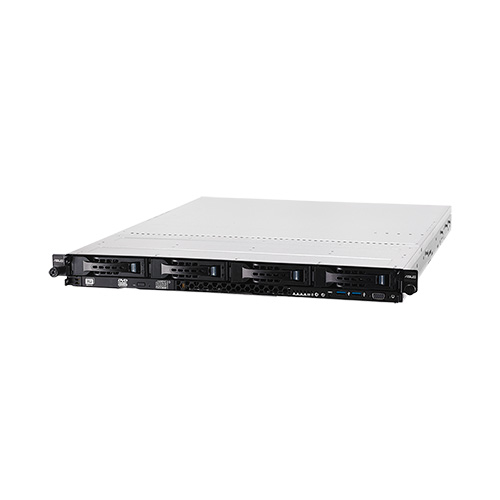

RS300-E8-PS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1150 Intel® Celeron™ processors Intel® Pentium™ processors 4th Gen Intel® Core™ i3 processors Intel® Xeon® processor E3-1200 v3 product family *Refer to support page for more information |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C224 Chipset |
| Memory | Memory Type : UDIMM 1600/1333 DDR3* Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Size : 8GB, 4GB, 2GB UDIMM |
| Expansion Slots | 1 * PCI-E x16 (Gen3 x8 link) (Full-Height/HL) 1 * PCI-E x8 (Gen3 x4 link) (Full-Height/HL) 1* PIKE Slot for Stroage Enhancement |
| Storage | SAS Controller : ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) SATA Controller : Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 10, 0, 1, 5 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 1, 0, 10 ) Intel® C224 2 x SATA2 3Gb/s ports 4 x SATA3 6Gb/s ports |
| HDD Bays | 4 x Hot-swap 3.5" "HDD Bays 2 x SSD Bays(Optional) |
| Auxiliary Storage FDD/CD/DVD | 1 * Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD ROM |
| Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 32MB VRAM |
| Rear I/O Ports | 1 x PS/2 KB/MS port 5 x RJ-45 ports (One for ASMB7-iKVM)(Optional) 4 x USB 3.0 ports (Front x 2, Rear x 2) 2 x USB 2.0 ports (Front x 0, Rear x 2) 1 x Internal A Type USB Port 2 x VGA port (Front x 1, Rear x 1) 1 x External Serial Port |
| OS Support | Windows® Server 2012 Windows® 8 32/64-bit CentOS 5.8/6.3 64-bit Windows® Server 2008 R2 Enterprise RedHat® Enterprise Linux AS5.8/6.3 64-bit CentOS 5.8/6.2 64-bit *Subject to change without any notice |
| Management Solution | Software: ASWM Enterprise Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-IP |
| Regulatory Compliance | CCC, C-Tick, FCC(Class A), CE, BSMI |
| Dimensions | 615mm x 444mm x 44mm 24.21" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight: 10.20 Kg Gross Weight: 16.00 Kg |
| Power Supply | Single 400W 80PLUS Gold Power Supply Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1 |
| Environment | Operation temperature: 10℃ ~ 40℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x RS300-E8 User's Guide 1 x Bag of Screws 1 x AC Power Cable 1 x ASUS Auto Installation DVD 1 x RS300-E8 Support DVD 1 x ASWM ENTERPRISE DVD |
| Optional Items | 1 x RS300-E8 User's Guide 1 x ASUS ASWM Enterprise User's Guide 1 x Bag of Screws 1 x AC Power Cable 1 x ASUS Auto Installation DVD 1 x RS300-E8 Support DVD 1 x ASWM ENTERPRISE DVD |
パーツ仕様
| Chassis | ASUS R10E 1U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS P9D-C/4L Server board (60SB0330-SB0A03) | ||||
| HDD Backplane | 1 x SAS/SATA Backplane (BP4LX-R10A) (60SC00G1-SC0A01) | ||||
| Front Panel Board | 1 x Front I/O Board (60SC03Z0-SC0A01) | ||||
| Riser Card | 1 x PCI-E Riser Card (RE16LE8R-R10A) (60SC00Q0-SC0C04) | ||||
| CPU Heatsink/ Cooler | 1 x CPU Heatsink (13071-00880000) | ||||
| Power Supply Unit | 1 x 400W Single Power Supply(0A100-00180000) | ||||
| HDD Tray | 4 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1) | ||||
| Fan | 4 x System Fans (40mm x 28mm) (13G074108060) | ||||
| Fan Holder | 4 x Fan Holder (13GS1200P070-1 + 13GS0F00P021-1) | ||||
| Air Duct/Mylar | Thermal Mylar (13GS1J00L100-1) | ||||
| Optical Drive | 1 x Slim DVD-RW (Optional) (17601-00011000) |
||||
| Mounting Rails | 1 x Tool-less rail kit (13SV0006AM0801) | ||||
| Cable | 1 x USB3.0 2*10P 180 TO 90,680MM (14002-00200000) 1 x LAN LED CBL 2*4P TO 1*5P L=900(14001-00790000) 1 x VGA CABLE 2*8 TO 2*8 L=700MM(14002-00210000) 1 x MINI SATA 13P TO 7P+4P,390MM(14G000114512) 1 x SATA 7P*2 TO 7P*2,L=350MM(14001-00720000) 1 x SATA 7P*2 TO 7P*2,L=650MM(14001-00720400) 1 x W.H CABLE 6P TO 6P,L= 550MM(14G03001120C) 1 x W.H CABLE 10P TO 8P,L=700MM(14G030028210) 1 x FPB CBL 2*8 TO 2*10+1*6,750MM(14G030042840) 1 x PMBUS CABLE 5P TO 5P L:500MM(14G000611200) |
