生産終了

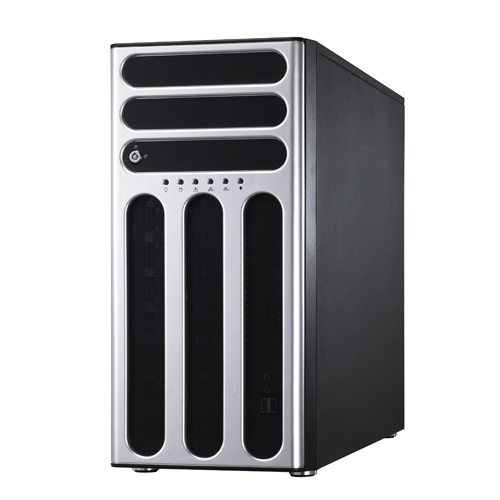

TS700-X7/PS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (115W) Intel® Xeon® processor E5-2600 v2 product family (115W) QPI 6.4 / 7.2 / 8.0 GT/s *Refer to support page for more information |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB RDIMM/Maximum up to 256GB LRDIMM/Maximum up to 64GB UDIMM Memory Type : DDR3 1866*/1600/1333/1066/800 RDIMM*1 DDR3 1866*/1600/1333/1066 UDIMM non ECC*1 DDR3 1866*/1333/1066 LRDIMM*1 Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Full-Height Full-Length 2 * PCI-E x16 (x8 Gen3 Link)+ 2 * PCI-E x8 (x8 Gen3 Link); MIO supported+ 1 * PCI-E x8 (x4 Gen2 Link) or 2 * PCI-E x16 (x16 Gen3 Link)+ 1 * PCI-E x8 (x4 Gen2 Link) Additional Slot: 1* PIKE Slot for Stroage Enhancement |
| Storage | SATA Controller : Intel® C602-A AHCI 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) |
| HDD Bays | 4 * Hot-swap 3.5" "HDD Bays |
| Auxiliary Storage FDD/CD/DVD | 3 * 5.25" media bays (Options: No Device / DVD-RW) (DVD-RW default for North America) |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x External Serial Port 3 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 2 x USB 3.0 ports 1 x VGA port 1 x PS/2 mouse port |
| OS Support | CentOS 5.8/6.2 64-bit Windows® Server 2012 Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.8/6.3 64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit *Subject to change without any notice |
| Management Solution | ASWM Enterprise Default ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CCC, CE, C-Tick, FCC(Class B) |
| Dimensions | 445mm * 217.5mm * 545mm |
| Form Factor | 5U/Tower |
| Weight | 17Kg |
| Power Supply | 500W 80 PLUS Bronze Single Power Supply 100-240Vac, 10-6A, 50-60Hz |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x TS700-X7 User's Guide 1 x ASUS ASWM Enterprise User's Guide 1 x Bag of Screws 2 x AC Power Cable 1 x ASWM ENTERPRISE DVD 1 x TS700-X7 Support DVD 1 x ASMB6 SERIES DVD 1 x ASMB6 User's Guide |
| Optional Items | DVD-RW (17600-00010000) (DVD-RW default for North America) ASUS TS700-X7 Ball Bearing Rail Kit (13GS0K00M040 + 13GS170AM040-1) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) ASUS PIKE 2208 H/W RAID card |
| Note | *1 DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest memory AVL update |
パーツ仕様
| Chassis | ASUS T50A 5U Pedestal Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z9PA-D8 Server board | ||||
| HDD Backplane | 1 x SAS/SATA Backplane (BP4LX-TRS8) (80-C1SDI0-00B02) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01) | ||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090800) | ||||
| Power Supply Unit | 1 x 500W Single Power Supply (0A100-00140200) | ||||
| HDD Tray | 4 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1) | ||||
| Fan | 3 x System Fans (80mm x 38mm) (13G074186020) | ||||
| Optical Drive | 1 x DVD-RW (Optional) (17600-00010000) (DVD-RW default for North America) |
||||
| Cable | 1 x SATA 7Pin, L=500mm (14G000100101) 2 x SATA 7Pin TO 7Pin, L=500mm (14G000130233) 1 x USB CABLE 10Pin TO 10Pin, L=350mm (14G143083000) 1 x W.H CABLE 10Pin TO 8Pin, L=700mm (14G030028210) 1 x W.H CABLE 6Pin TO 6Pin, L=550mm (14G03001120C) 4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552) |
