生産終了

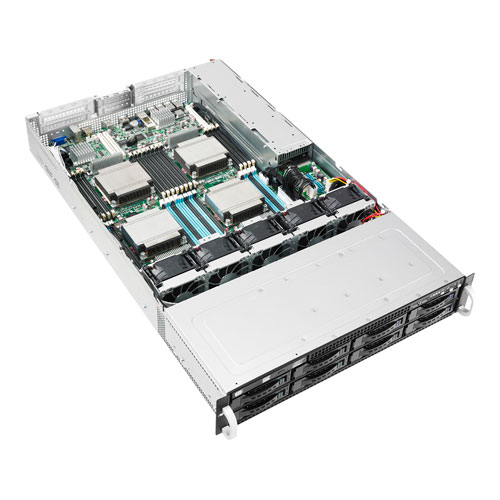

RS920-E7/RS8
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 4 x Socket 2011 Intel® Xeon® processor E5-4600 product family (130W) Intel® Xeon® processor E5-4600 v2 product family (130W) |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 32 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB RDIMM/Maximum up to 256GB UDIMM/Maximum up to 1024GB LRDIMM Memory Type : DDR3 1600/1333/1066/800 RDIMM DDR3 1333/1066 UDIMM DDR3 1333/1066 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Full-length 4 * PCI-E x16 (2 * Gen3 x16 Link or 4 * Gen3 x8 Link) Half-length/Low-profile 2 * PCI-E x8 (Gen3 x8 Link) |
| Storage | SATA Controller : Intel® C602-A 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) |
| HDD Bays | 8 * Hot-swap 3.5" "HDD Bays |
| Networking | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x External Serial Port 5 x RJ-45 ports (One for ASMB6-iKVM) 6 x USB 2.0 ports (Front x 2, Rear x 1)*4 2 x USB 3.0 ports 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 KB/MS port |
| OS Support | CentOS 5.6 32/64-bit Windows® Server 2008 R2 Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | default 1 x ASMB6-iKVM for KVM-over-IP |
| Safety | Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) |
| EMI | US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Australia (C-TICK) Taiwan (BSMI) |
| Dimensions | 750mm * 444mm * 88mm |
| Weight | 20Kg |
| Power Supply | 1620W (80+) (Platinum level) 1+1 Redundant Power Supply (following different configuration by region) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x RS920-E7 User's Guide 1 x ASUS ASWM Enterprise User's Guide 1 x Bag of Screws 2 x AC Power Cable 1 x ASWM ENTERPRISE DVD 1 x RS920-E7 Support DVD 1 x ASMB6 SERIES DVD 1 x ASMB6 User's Guide |
| Optional Items | Second 1620W Redundant Power Supply Module (04G180001700) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) |
パーツ仕様
| Chassis | ASUS R21C 2U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z9PX-Q32 Server board | ||||
| HDD Backplane | 1 x RS920-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05) | ||||
| Power Distribution Board | 1 x Power Distribution Board (60SC0200-SC0A01) 1 x Power Distribution Extension Board (60SC0210-SC0A01) |
||||
| Midplane/Connection Board/Convert Board | 1 x Power Sharing Board (08003-00220100) | ||||
| Riser Card | 1 x left PCI-E Riser Card (RE16LX2R-R21C)(60SC03A0-SC0A02) 1 x right PCI-E Riser Card (RE16LX2R-R21C)(60SC03A0-SC0A02) 1 x middle PCI-E Riser Card(RE16RX2R-R21C)(60SC03B0-SC0A02) |
||||
| CPU Heatsink/ Cooler | 4 x CPU Heatsink (13071-00090600) | ||||
| Power Supply Unit | 2 x 1620W Redundant Power Supply (04G180001700) | ||||
| HDD Tray | 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) | ||||
| Fan | 5 x System Fans(80mm x 38mm) (13070-00230000) | ||||
| Optical Drive | 1 x Slim DVD-RW (Optional) (17G14113400N) (DVD-RW default for North America) |
||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) | ||||
| Cable | 1 x W.H CABLE HSG 8P TO 8P (14003-00090100) 1 x W.H CABLE HSG 8P TO 8P (14003-00090200) 1 x PMBUS CABLE 6P TO 6P (14G000611220) 2 x W.H CABLE 10P TO 8P,L=700mm (14G030028210) 2 x SATA 6G CABLE L=900+800+700*2 (14001-00280000) 1 x USB CABLE 2*4 TO 2*5,L=850mm (14001-00300000) 1 x MINI SATA 13P TO 7P+4P,L=800mm (14001-00240000) 1 x POWER 8P TO TERMINAL, L=80mm (14001-00190100) 1 x POWER 24P TO TERMINAL, L=80mm (14001-00180000) 1 x FPB CBL 2*8 TO 2*10,L=730mm(14003-00100000) 1 x POWER 8P TO TERMINAL, L:200MM (14001-00190000) 2 x W.H CABLE 10P TO 8P,L=700MM (14G030028210) 1 x W.H CABLE 6P TO 6P,L= 550MM (14G03001120C) |
