生産終了

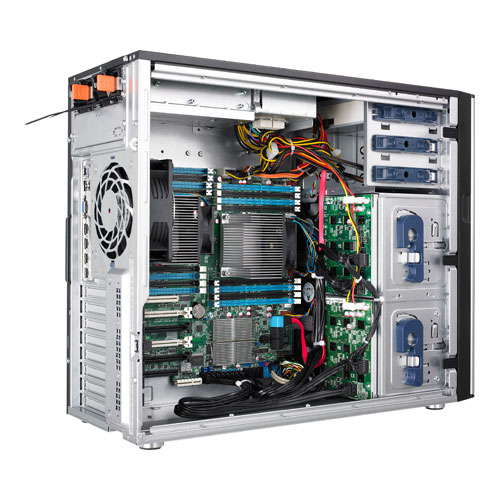

TS700-E7/RS8
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (115W/130W/135W/150W) *2 Intel® Xeon® processor E5-1600 v2 product family (150W) *2 *Please refer to overview for details |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM Memory Type : DDR3 1866/1600/1333/1066/800 RDIMM*1 DDR3 1866/1600/1333/1066 UDIMM *1 DDR3 1866/1333/1066 LRDIMM*1 Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | 4* PCI-E x16 (Gen3 x16 Link) + 1*PCI-E x16 (Gen3 x8 Link) Or 3* PCI-E x16 (Gen3 x16 Link) + 3*PCI-E x16 (Gen3 x8 Link) |
| Storage | SATA Controller : 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
| HDD Bays | 8 * Hot-swap 3.5" "HDD Bays |
| Networking | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 5 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | CentOS 5.6 32/64-bit Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | default 1 x ASMB6-iKVM for KVM-over-IP |
| Safety | Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) Taiwan (BSMI) China (CCC) |
| Dimensions | 445mm * 217.5mm * 545mm |
| Form Factor | 5U/Tower |
| Weight | 20Kg |
| Power Supply | 800W (80+) (Gold level) 1+1 Redundant Power Supply (following different configuration by region) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x TS700-E7 User's Guide 1 x ASUS ASWM Enterprise User's Guide 1 x Bag of Screws 2 x AC Power Cable 1 x ASWM ENTERPRISE DVD 1 x TS700-E7 Support DVD 1 x ASMB6 SERIES DVD (15091-01H00000) 1 x ASMB6 User's Guide (15060-01U00000) |
| Optional Items | DVD-RW (17G141147005) (DVD-RW default for North America) Second 800W Redundant Power Supply Module ASUS TS700-E7 Ball Bearing Rail Kit (13GS0K00M040 + 13GS170AM040-1) Heatsink for CPU 135W upgrade kit (13071-00090100) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) |
| Note | *1 DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest memory AVL update *2 >115W support with optional thermal upgrade kit |
パーツ仕様
| Chassis | ASUS T50A 5U Pedestal Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z9PE-D16 Server board | ||||
| HDD Backplane | 1 x TS700-E7/RS8 SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02) 1 x TS700-E7/RS8 SAS/SATA Backplane (BP4LX-TRS8/S) (60SC0250-SC0B02) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-T50A) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090800) | ||||
| Power Supply Unit | 1 x 800W Redundant Power Supply (0A100-00080100) (2 x Power Supply Module default for North America) |
||||
| HDD Tray | 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) | ||||
| HDD Cage | 2 x HDD Cage (13GS170AM010-1) | ||||
| Fan | 3 x System Fans (80mm x 38mm) (13G074186020) 1 x System Rear Fan (120mm x 38mm)(13G074186010) |
||||
| Fan Holder | 3 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1) | ||||
| Air Duct/Mylar | 1 x Air Duct (13GS1700P180-1) | ||||
| Optical Drive | 1 x DVD-RW (Optional) (17G141147005) (DVD-RW default for North America) |
||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L=500mm (14G000611200) 1 x USB CABLE 2*4 TO 2*5,L=850mm (14G000509430) 1 x POWER CABLE 8P TO 8P,L=70mm (14G000610110) 2 x POWER CABLE 8P TO 8P,L=420mm (14G000610120) 1 x POWER CABLE 24P TO 24P,L=460mm (14G000603750) 4 x SATA 7P*2 TO 7P*2,L=400mm (14G000128040) 4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552) 1 x FPB CBL 2*8 TO 2*10+1*L=6,950mm (14003-00110000) |
