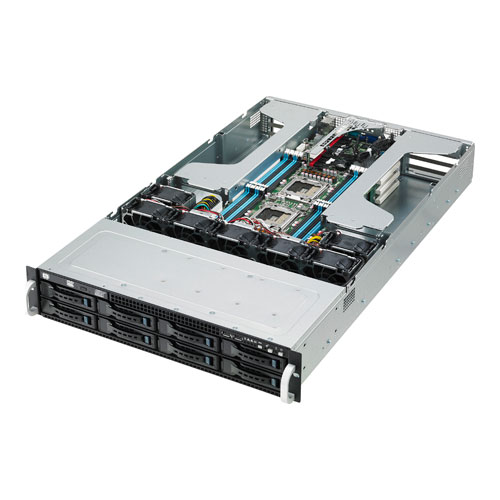

ESC4000/FDR G2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (135W) Intel® Xeon® processor E5-2600 v2 product family (135W) QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A PCH Mellanox ConnectX-3 FDR |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 128GB UDIMM Memory Type : Quad Channel DDR3 1866/1600/1333/1066/800 RDIMM Quad Channel DDR3 1866/1600/1333/1066 UDIMM Quad Channel DDR3 1866/1600/1333/1066 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Total: 9 Full-length/Full-height 8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) (Slot CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied) Half-lenth/Low-profile 1 * PCI-E 3.0 x16 (Gen3 x8 Link) (PIKE SAS Card for Storage Enhancement) *Please refer to add-on card AVL in ASUS Download Site for support list **With PIKE riser card, the data-transfer rate runs at x4 links. |
| Storage | SATA Controller : Intel® C602-A AHCI 2 x SATA3 6Gb/s ports 2 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel® C602-A SCU 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional) |
| HDD Bays | 8 * Hot-swap 3.5" HDD Bays |
| Auxiliary Storage FDD/CD/DVD | 1 * Slim-type Optical Drive Bay Options: No Device / DVD-RW (DVD-RW default for North America) 1 SATA port will be occupied once CD/DVD ROM is installed to the system, which means there are 2 combinations for the application. 1. 7 HDDs + 1 ODD. 2. 8 HDDs + External USB ODD. |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN 1 x Single Port Mellanox ConnectX-3 FDR InfiniBand with QSFP interface |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x External Serial Port 3 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port 1 x VGA port 1 x QSFP Port |
| OS Support | CentOS 5.7/6.2 32/64-bit Windows® Server 2008 R2 Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.7/6.2 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise default 1 x ASMB6-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 750mm * 444mm * 87mm |
| Form Factor | 2U |
| Weight | 19kg |
| Power Supply | 1+1 Redundant 1620W 80PLUS Platinum Power Supply; 1000W: 100-120Vac, 12-10A; 1200W: 120-140Vac, 12-10A; 1620W: 180-240Vac, 10.5-8A (following different configuration by region as below) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x ESC4000 G2 User's Guide 1 x Bag of Screws 1 x AC Power Cable 1 x ESC4000 G2 Support DVD 1 X ASWM Enterprise DVD 1 x ASMB6 Manual 1 x ASMB6 DVD |
| Optional Items | Second 1620W Redundant Power Supply Module (04G180001700) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) |
パーツ仕様
| MB | ASUS Z9PG-D16 Series Server board | ||||
|---|---|---|---|---|---|
| HDD Backplane | 1 x SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R21B-G2) (61-C1SF40-01) | ||||
| Riser Card | 1 x Left 4 * PCIe Gen3 x16 slots Riser card (RE16LX4-R21B-G2 ) (61-C1SF50-01) 1 x Right 4 * PCIe Gen3 x16 slots Riser card (RE16RX4-R21B-G2 ) (61-C1SF60-01) 1 x PCI-E Low-profile Riser card (RE16R-R12B) (60SC01D0-SC0B01) 1 x PIKE Riser card (RE16R-R21B-PIKE) (60SC0110-SC0A01) **With PIKE riser card, the data-transfer rate runs at x4 links. |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090600) |
||||
| Power Supply Unit | 1 x 1620W Redundant Power Supply (04G180001700) (2 x Power Supply Module default for North America) |
||||
| HDD Tray | 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) |
||||
| Fan | 7 x System Fans (80mm x 38mm) (13G074187000) |
||||
| Air Duct/Mylar | 1 x MB Air Duct Mylar (13GS1U00L030-1;13GS1U00T010-1) 4 x NVIDIA Tesla M20x0 series GPU Air Duct (13GS1K0AM050-1) 4 x NVIDIA Tesla K10/K20 series GPU Air Duct (13GS1U0AM020-1) 4 x Intel Xeon Phi series Co-processor Air Duct (13GS1U0AM050-1) |
||||
| Optical Drive | 1 x Slim DVD-RW (17G14113400N) (DVD-RW default for North America) 1 SATA port will be occupied once CD/DVD ROM is installed to the system, which means there are 2 combinations for the application. 1. 7 HDDs + 1 ODD. 2. 8 HDDs + External USB ODD. |
||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) |
||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L:140MM (14G000611201) 1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303) 1 x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210) 4 x POWER CABLE 8P TO 6+2P,L=470MM (14001-00250000)(for GPU/Co-processor cards) 2 x W.H CABLE 10P TO 8P,L=1050MM (14G030028230) 1 x W.H CABLE 6P TO 6P,L=900MM (14G03001120E) 1 x SATA CABLE 7P*2 TO 7P*2,L850MM (14G000130810) 3 x SATA CABLE 7P*2 TO 7P*2,L=1M (14G000130811) 1 x FPB CBL 2*8 TO 2*10+1*6,750MM (14G030042840) |
