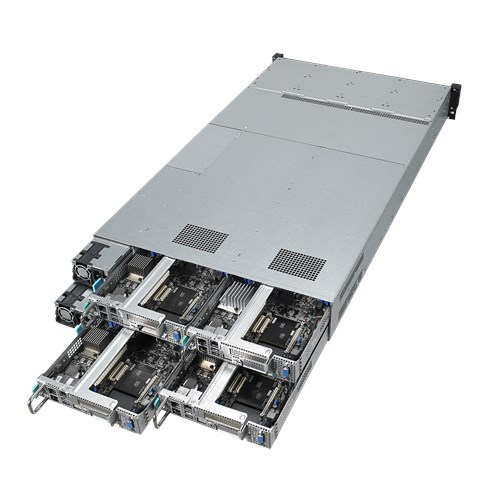

RS720Q-E9-RS8-S
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) per Node 1st and 2nd Gen Xeon® Scalable Processor Family (165W) UPI (10.4 GT/s) |
|---|---|
| Generation | E9 |
| Core Logic | Intel® Lewisburg PCH C621 |
| Memory | Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU) per Node Capacity : Maximum up to 1536GB RDIMM Memory Type : DDR4 2933/2666/2400 /2133 RDIMM DDR4 2933/2666/2400 /2133 LRDIMM DDR4 2933/2666/2400 /2133 LR-DIMM 3DS Memory Size : 128GB, 64GB, 32GB, 16GB, 8GB RDIMM/LRDIMM/LR-DIMM 3DS |
| Expansion Slots | Per Node: 1 x PCI-E x16 (Gen3 x16 link), LP, HL 1 x OCP 2.0 Mezzanine (Gen3 x16 link) |
| Storage | per Node SAS/SATA Controller : Onboard LSI 3008 8-port SAS 12G Controller |
| HDD Bays | 8 x 2.5" Hot-swap Storage Bays(All Support SATA/SAS/NVMe) * each node could control 2 drives. ** CPU2 is necessary for the function of front hot-swap bays. |
| Networking | per Node 2 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | N/A |
| Rear I/O Ports | Per Node: 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Management port |
| Switch/LED | Per Node: Rear: - 1 x Power Switch/LED - 1 x Q-Code/Port 80 LED Front: - 1 x Power Switch/LED - 1 x Location Switch/LED - 1 x Message LED - 2 x LAN LED |
| OS Support | Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer |
| Management Solution | ASUS Control Center ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 800 x 444 x 88mm |
| Form Factor | 2U |
| Weight | Net Weight: 39 Kg Gross Weight: 43 Kg |
| Power Supply | 1+1 Redundant 1600/2200W 80 PLUS Platinum Power Supply Rating: 200-240 Vac, 9.5A (for each inlet), 47-63Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Note | 1. If NVMe SSD is equipped, Intel® VROC function could be enabled by VROC Hardware Key. 2. For the full function of the system, please install both CPUs on each node. |
