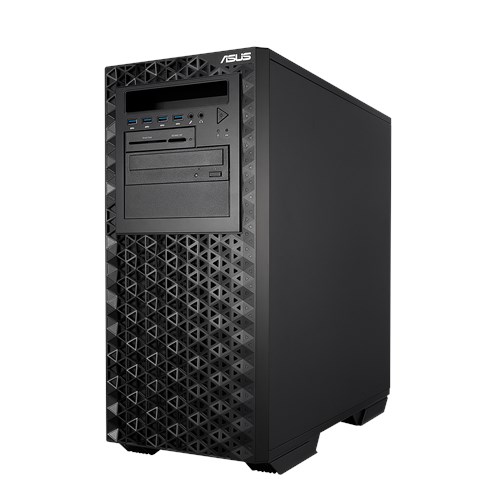

E900 G4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) Intel® Xeon® Scalable Processors Family *Refer to support page for more information |
|---|---|
| Core Logic | Intel® C621 Chipset |
| Memory | Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU) Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : DDR4 2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | Total 7 PCIE slots 3 x PCIe 3.0 x16 slots (Gen3 x16 link), FH, FL 2 x PCIe 3.0 x16 slots (single Gen3 x16 link, dual Gen3 x8/x8 link), FH, FL 2 x PCIe 3.0 x16 slots (Gen3 x8 link), FH, FL |
| Storage | SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SATA Controller : ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) 12G SAS Support |
| HDD Bays | 8 x 3.5"/2.5" HDD Storage Bays (4* 3.5 SATA HDD+4* 2.5 SAS HDD with PIKE card) 1 x M.2 Socket 3, supporting type 22110/2280/2260/2242 (PCIe Gen3 x4 and SATA mode) 4 x U.2 connector* * Supports Intel® Virtual RAID on Chip (Intel® VROC) |
| Auxiliary Storage FDD/CD/DVD | 2 x 5.25" media bays (Options: DVD-ROM/DVD-RW) |
| Networking | 2 x Intel® I210AT |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | 1 x Headphone jack 1 x Microphone jack 4 x USB 3.1 Gen1 ports |
| Rear I/O Ports | 4 x USB3.1 Gen1 ports 2 x USB3.1 Gen2 ports (1 x Type-A and 1 x Type-C™) 2 x USB 2.0 ports (1 supports USB BIOS Flashback®) 1 x USB BIOS Flashback® button 1 x PS/2 and keyboard Mouse port 2 x RJ-45 LAN ports 1 x Optical S/PDIF Out port 5 x Audio Jacks |
| Switch/LED | 1 x Power switch/LED 1 x Reset switch 1 x HDD Access LED |
| OS Support | Windows® Server 2016 64 bit Windows® 10 *Subject to change without any notice Please find the latest OS support from http://www.asus.com/ *TPM needed |
| Management Solution | ASUS Control Center support ASMB9 Card |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 532mm x 243mm x 582mm 21.0” x 9.5” x 22.9” |
| Weight | Net Weight Kg: 18.33kg Gross Weight Kg: 23.15kg |
| Power Supply | Dual 2000W Titanium, CRPS (1+1 Redundant) |
| Environment | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
