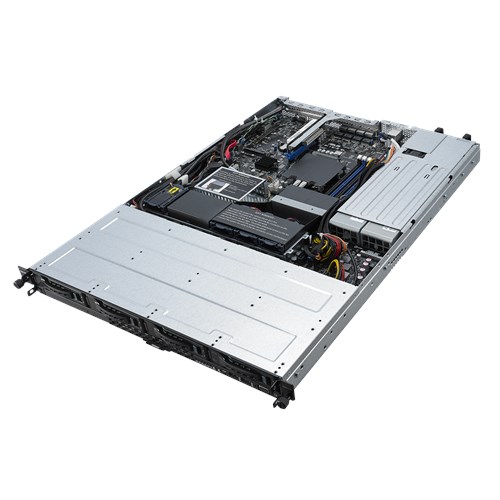

RS300-E10-RS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors Intel® Xeon® E Processors *Refer to support page for more information |
|---|---|
| Generation | E10 |
| Core Logic | Intel® C242 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB UDIMM * Refer to support page for more information |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: 2 1 x PCI-E x16 (x8 Gen3 Link) 1 x PCI-E x8 (x8 Gen3 Link) |
| Storage | SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports *1 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *2 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| HDD Bays | 4 x 3.5” Hot-Swap HDD Bays 2 x SSD Internal SSD Bays 2 x M.2 (NGFF 22110/2280/2260/2242) |
| Auxiliary Storage FDD/CD/DVD | 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD ROM |
| Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 32MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports | 4 x RJ-45 ports 2 x USB 3.1 ports 2 x USB 3.0 ports 1 x VGA port 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional) |
| Switch/LED | Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED |
| OS Support | Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASUS Control Center Optional ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 615mm x 444mm x 44mm (1U) 24.21" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight: 12.87 Kg Gross Weight: 18.99 Kg |
| Power Supply | 1+1 Redundant 450W 80 PLUS Gold Power Supply Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1 |
| Environment | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
| Note | *1 4 by miniSAS HD + 2 x SATA *2 PCIE or SATA signal, gray SATA port will disable when M.2 is occupied |
