生産終了

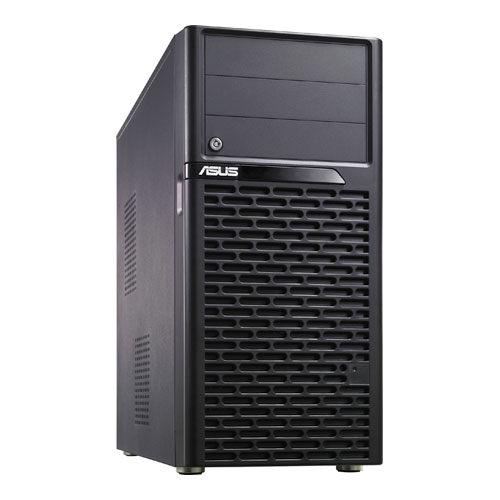

ESC2000 G2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family Intel® Xeon® processor E5-2600 v2 product family QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 8 (4-channel) Capacity : Maximum up to 256GB RDIMM/Maximum up to 64GB UDIMM Memory Type : Quad Channel DDR3 UDIMM non ECC Quad Channel DDR3 UDIMM with ECC Quad Channel DDR3 RDIMM |
| Expansion Slots | Total: 7 Full-length/Full-height 4 x PCI-E 3.0 x16 slots (Dual@x16/x16; Quad@x8/x8/x8/x8) 2 x PCI-E 3.0 x16 slots (@x16 speed) 1 x PCI-E 3.0 x16 slot (@x8 speed) *Please refer to add-on card AVL in ASUS Download Site for support list |
| Storage | SATA Controller : Intel® C602-A AHCI 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel® C602-A SCU 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SATA Controller : Marvell 88SE9230 4 x SATA3 6Gb/s ports Marvell® RAID Utility (For Windows Only) (Support Software RAID 0, 1, 10) |
| HDD Bays | 4 * Hot-swap 3.5" HDD Bays |
| Auxiliary Storage FDD/CD/DVD | 3 * 5.25" media bays (Optional: No ODD/DVD-RW) (DVD-RW default for North America) |
| Networking | 2 x Intel® 82574L |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| Multi-GPU Support | Support ATI® CrossFireX™ technology, up to Quad CrossFireX Supports NVIDIA® 4-Way Geforce SLI™ technology |
| On Board I/O | 1 x PS/2 KB/MS port 2 x USB 3.0 ports 6 x USB 2.0 ports 2 x RJ-45 ports 1 x S/PDIF Out (Optical) 1 x 8-channel Audio I/O |
| OS Support | CentOS 5.7/6.1 32/64-bit Windows® Server 2008 R2 Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit Windows® 7 32/64-bit RedHat® Enterprise Linux AS5.7/6.2 32/64-bit RedHat® Enterprise Linux Desktop WS 6.2 SuSE® Linux Enterprise Server 11.2 32/64-bit SuSE® Linux Enterprise Desktop 11.1 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise optional 1 x ASMB6-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class B) |
| Dimensions | 445mm * 217.5mm * 545mm |
| Form Factor | 5U/Tower |
| Weight | 17.2kg |
| Power Supply | 1350W 80+ Gold Single Power Supply (following different configuration by region) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x ESC2000 G2 User's Guide 1 x Bag of Screws 1 x AC Power Cable 1 x ESC2000 G2 Support DVD 1 X AWSM Enterprise DVD 1 x ASWM Enterprise Manual 1 x VGA Bracket 2 x COM port Cable |
| Optional Items | DVD-RW (17G141147005) (DVD-RW default for North America) ASUS ESC2000 G2 Ball Bearing Rail Kit (13GS0K00M040 + 13GS170AM040-1) Cooler for CPU 150W upgrade kit (13G070795020) Front Fan (80mm x 25mm) (13G074186020) |
パーツ仕様
| MB | ASUS Z9PE-D8 WS Workstation board | ||||
|---|---|---|---|---|---|
| HDD Backplane | 1 x SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-TRS8A) (61-C1SDJ1-01) |
||||
| CPU Heatsink/ Cooler | 2 x 150W CPU Cooler (13G070795020) |
||||
| Power Supply Unit | 1 x 1350W Single Power Supply (0A100-00090100) |
||||
| HDD Tray | 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) |
||||
| HDD Cage | 1 x T50C HDD Cage (13GS1H0AM010-1) |
||||
| Fan | 1 x Rear Fan (120mm x 38mm) (13G074158010) |
||||
| Fan Holder | 3 x Front Fan Holder (13GS1600P040-1) |
||||
| Optical Drive | 1 x DVD-RW (Optional)(17G141147005) (DVD-RW default for North America) |
||||
| Cable | 2 x SATA 6G CABLE 7P G/F BLA 500MM (14G000130233) 1 x SATA 7Pin TO 7Pin, L=500mm (14G000100101) 1 x W.H CABLE 6P TO 6P,L= 550MM(14G03001120C ) 1 x WIRE CABLE USB 10P TO 10P ,L=500(14G143083100) 1 x USB3.0 CABLE HSG TO HSG L=600 (14001-000800DP) 1 x AUDIO CABLE 2*5P TO 2*5P HSG (14G143086002) 1 x FAN CABLE 4P/M TO 4P/F, L100MM (14G000015410) |
