生産終了

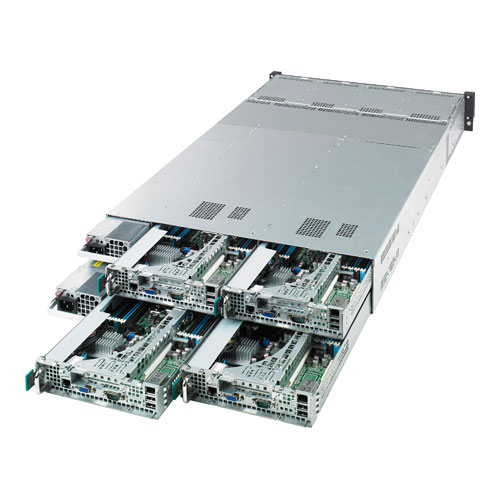

RS726Q-E7/RS12
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 per Node Intel® Xeon® processor E5-2600 product family (115W) Intel® Xeon® processor E5-2600 v2 product family (115W) QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A PCH Mellanox ConnectX-3 FDR |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) per Node Memory Type : DDR3 1866/1333/1066 LRDIMM* DDR3 1866/1600/1333/1066/800 RDIMM* DDR3 1866/1600/1333/1066 UDIMM* Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | 1 * PCI-E x16 (Gen3 x16 Link) (Low profile/HL ) per Node |
| Storage | SATA Controller : Intel® C602-A 2 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) |
| HDD Bays | Total 12 x 3.5" HDD Bays in 2U (3 * Hot-swap 3.5" HDD Bays per Node ) |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN 1 x Single Port Mellanox ConnectX-3 FDR InfiniBand with QSFP interface |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | per Node 1 x External Serial Port 3 x RJ-45 ports (One for ASMB6-iKVM) 2 x USB 2.0 ports 1 x VGA port 1 x Internal A Type USB Port 1 x QSFP Port |
| OS Support | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise 2.0 default 1 x ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 750mm * 444mm * 87mm |
| Form Factor | 2U |
| Weight | 25Kg |
| Power Supply | 1+1 Redundant 1620W 80PLUS Platinum Power Supply 1000W: 100-120Vac, 12-10A, 50-60Hz, Class 1 1200W: 100-140Vac, 12-10A, 50-60Hz, Class 1 1620W: 180-240Vac, 10.5-8A, 50-60Hz, Class 1 |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x Bag of Screws 2 x AC Power Cable 1 x Infiniband Support DVD 1 x RS72xQ-E7 Support DVD (15091-02P00000) 1 x RS72xQ-E7 User's Guide (15060-01E00000) 1 x ASWM ENTERPRISE DVD (15091-01J20000) 1 x ASUS ASWM Enterprise User's Guide (15060-01800100) 1x ASMB6-iKVM SDVD (15091-01H00000) 1x ASWM6-iKVM User Guide (15060-01U00000) |
| Optional Items | PIKE Riser Card (RE16R-R12B-PIKE) (90-S00CS0160T) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T) ASUS PIKE 2208 H/W RAID card (90SKC000-M00AN0) ASUS PIKE 2308 RAID card (90SKC000-M08AN0) |
| Note | * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest momory AVL update |
パーツ仕様
| Chassis | ASUS R21A 2U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | Z9PH-D16/FDR | ||||
| HDD Backplane | 1 x SAS/SATA Backplane (BP12LX-R21A) (60SC0150-SC0A01) | ||||
| Front Panel Board | 2 x Front I/O Board (FPB-R21A) (60SC0140-SC0A01) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R21A) (60SC0170-SC0A02) + (PSB-R21A) (60SC0160-SC0A01) |
||||
| Midplane/Connection Board/Convert Board | 1 x Midplane (MP8LX-R21A-M) (60SC0120-SC0A01) 4 x Connection Board (CB-R21A/2600) (61-C1SEJ5-01) |
||||
| Riser Card | 4 x PCI-E Riser Card (RE16R-R12B) (60SC01D0-SC0B01) | ||||
| CPU Heatsink/ Cooler | 8 x CPU Heatsink (13071-00090300) | ||||
| Power Supply Unit | 2 x 1620W Redundant Power Supply (04G180001700) | ||||
| HDD Tray | 12 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) | ||||
| Fan | 4 x System Fans (80mm x 38mm) (13G074187000) 16 x Fan Rivet (13G094011000) |
||||
| Air Duct/Mylar | Air Duct (13GS1K00P020-1) | ||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) | ||||
| Cable | Enclousre: 2x PMBUS CABLE 8P TO 8P L:180MM (14G000611210) 2x FPB CABLE PH2.0 2*8P TO 2*4P*2 (14G030046900) 4x MINI SAS CABLE 36P TO 36P L260 (14G000130900 1x FAN CABLE 2*6 TO 2*4P*2 100/55 (14G000015420) Node: 1x FPB CABLE 16P/20P*2,L:380MM (14G030042610) 1x W.H CABLE 10P TO 8P,L=700MM (14G030028210) 1x W.H CABLE 6P TO 6P,L=380MM (14G03001120D) 1x SATA CABLE 7P*3 TO 7P*3 L=650 (14G000130801) 1x W.H CABLE 4P TO 3P*2,L=150MM (14G030046810) 1x FAN CABLE 2*4P TO 4P*4,L=115M (14G000015430) 1x PMBUS CABLE 6P TO 6P L:80MM (14001-00070000) |
