生産終了

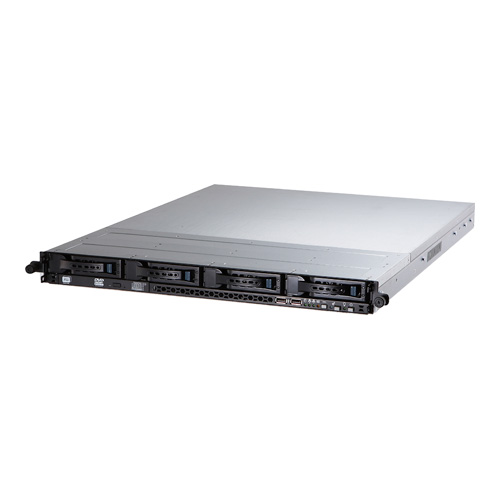

RS700-E7/RS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (150W) *1 Intel® Xeon® processor E5-2600 v2 product family (150W) *1 QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list *Please refer to overview for details |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 768GB LRDIMM Memory Type : DDR3 1866/1333/1066 LRDIMM * DDR3 1866/1600/1333/1066/800 RDIMM with ECC* DDR3 1866/1600/1333/1066 UDIMM * Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | 2 * PCI-E x16 (Gen3 x16 Link) (FH/HL ) 1 * PIKE Slot for Stroage Enhancement |
| Storage | SATA Controller : Intel® C602-A 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS/SATA Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) |
| HDD Bays | 4x 3.5" Hot-Swap HDD Bays |
| Auxiliary Storage FDD/CD/DVD | 1 * Slim-type Optical Drive Bay Options: No Device / DVD-RW (DVD-RW default for North America) |
| Networking | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 5 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise On-Board ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CCC, CE, C-Tick, FCC(Class A) |
| Dimensions | 689.5mm * 444mm * 43mm |
| Form Factor | 1U |
| Weight | 18Kg |
| Power Supply | 1+1 Redundant 800W 80PLUS Platinum Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x Bag of Screws 2 x AC Power Cable 1 x RS700-E7 Support DVD 1 x RS700-E7 User's Guide 1 x ASWM ENTERPRISE DVD 1 x ASUS ASWM Enterprise User's Guide 1x ASMB6-iKVM SDVD 1x ASWM6-iKVM User Guide |
| Optional Items | ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T) ASUS PIKE 2308 RAID card (90SKC000-M08AN0) |
| Note | * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest memory AVL update *1 >135W support under 25 °C environment |
パーツ仕様
| Chassis | ASUS R12D CHASSIS ASSY(13GS1E0AM020-1) | ||||
|---|---|---|---|---|---|
| MB | Z9PP-D24 (61-MSVDW0-01 ) | ||||
| HDD Backplane | 1 x BP4LX-R10A (61-C1SD61-02) | ||||
| Front Panel Board | 1x FPB-AR14 (61-C1S880-02) | ||||
| Riser Card | 1x RE16L-R12A (60SC00D0-SC0A02) 1x RE16R-R12A (60SC00E0-SC0A02) |
||||
| CPU Heatsink/ Cooler | 2x LGA2011 1U VC HEAT SINK (13071-00090600) | ||||
| Power Supply Unit | 2x 800W Redundant Power Supply (0A100-00080000) | ||||
| HDD Tray | 4x Hot-Swap 3.5" HDD Trays (13GS1I0AM010-1) | ||||
| HDD Cage | 1x AR16 35HDD MODULE ASSY (13GS0I0AM110-1) | ||||
| Fan | 8x System Fans (40mm 56mm) (13G074152010) | ||||
| Fan Holder | 8x FAN HOUSING (13GS1200P070-1) 16x REVIT (13G014082010) 16x SCREW M3.8 *7L(F) B-ZN #2 (13GMCF4W070Z-1) |
||||
| Air Duct/Mylar | 1x R12D PUMA 24D FANDUCT A (13GS1E00P020-1) 1x R12D PUMA 24D FANDUCT B (13GS1E00P030-1 |
||||
| Optical Drive | 1x Slim ODD (17G14113400N) 1x R10E ODD BEZEL ASSY (13GS1J0AP010-1) |
||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) | ||||
| Cable | 1x FPB CBL 2*8 TO 2*10+1*6,950MM (14003-00110100) 1x MINI SAS TO 4 SATA L:820MM (14001-00170000) 1x POWER CABLE 8P TO 8P,400MM (14001-00260000) 1x POWER CABLE 8P TO 8P;L=200MM (14G000610140) 1x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303) 1x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210) |
