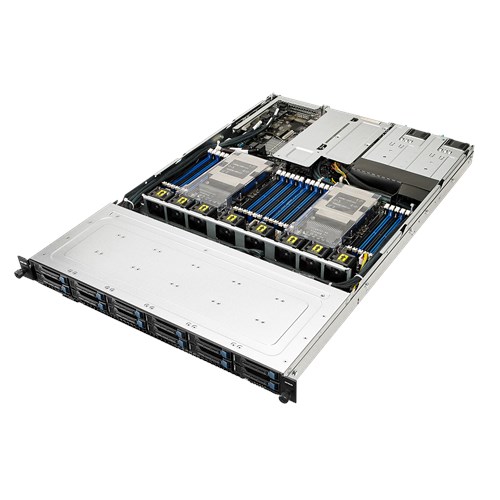

RS700-E9-RS12
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information UPI (10.4 GT/s) |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C621 Chipset |
| Memory | Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB LR-DIMM 3DS Memory Type : DDR4 2933/2666/2400 RDIMM DDR4 2933/2666/2400 LRDIMM DDR4 2933/2666/2400 LR-DIMM 3DS DDR4 AEP DIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | 1 x PCI-E x16 (Gen3 x16 link), FH, HL 1 x PCI-E x16 (Gen3 x8 link), LP, HL 1 x PCI-E x8 (Gen3 x8 link), LP, HL 1 x OCP 2.0 Mezzanine (Gen3 x16 link) |
| Storage | SATA Controller : Intel® Lewisburg PCH 10 x SATA3 6Gb/s ports + 1 x M.2 connector or 9 x SATA 6Gb/s ports + 2 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| HDD Bays | 12 x 2.5" Hot-swap Storage Bays (4 x NVMe+ 8 x SATA/SAS) (4 x NVMe+ 4 x SATA/NVMe +4 x SATA) 2 x M.2 (22110, 2280, 2260, 2242) (Support SATA/PCIe M.2,SATA RAID) *SAS support via PIKE |
| Networking | 1 x Dual Port Intel I350-BT2 Gigabit LAN controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Rear I/O Ports | 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED | Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x Drive LED 1 x Location LED Front Switch/LED: 1 x Power switch/LED 1 x Location LED 1 x Message LED 1 x DriveD LED LAN 1-2 LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer Fedora Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center(Classic) On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 686mm x 444mm x 44mm(1U) 27" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight : 16.8KG Gross Weight : 18.35KG |
| Power Supply | 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac, 9.4A/4.72A, 47-63Hz Class I or 240Vdc, 4.6A (240Vdc Only for China) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
