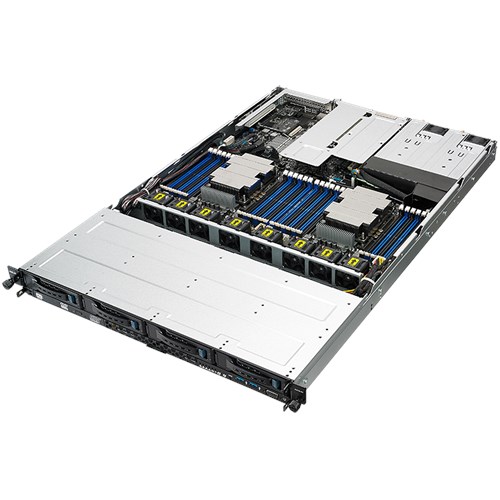

RS700-E9-RS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information UPI (10.4 GT/s) |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C621 Chipset |
| Memory | Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB LR-DIMM 3DS Memory Type : DDR4 2933/2666/2400 RDIMM DDR4 2933/2666/2400 LRDIMM DDR4 2933/2666/2400 LR-DIMM 3DS Intel® Optane™ DC Persistent Memory Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. * Intel® Optane™ DC Persistent Memory for 2nd Generation Intel |
| Expansion Slots | 1 x PCI-E x16 (Gen3 x16 link), FH, HL (CPU1) 1 x PCI-E x16 (Gen3 x8 link), LP, HL (CPU2) 1 x PCI-E x8 (Gen3 x8 link), LP, HL (CPU2) 1 x OCP 2.0 Mezzanine (Gen3 x16 link) (CPU1) |
| Storage | SATA Controller : Intel® C621 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| HDD Bays | 4 x 3.5" Hot-swap Storage Bays (4 x SATA/SAS) 2 x M.2 (22110, 2280, 2260, 2242) (Support SATA/PCIe M.2,SATA RAID) *SAS support via PIKE |
| Auxiliary Storage FDD/CD/DVD | 1xslim-type Optical Drive Bay Options：No Device/DVD-RW |
| Networking | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports | 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED | Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x HDD LED 1 x Location LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED 1xHDD LED LAN 1-4 LED * LAN3-4 for Mezzazine card use |
| OS Support | Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html |
| Management Solution | ASUS Control Center(Classic) On-Board ASMB9-iKVM for KVM-over-IP |
| Dimensions | 686mm x 444mm x 44mm(1U) 27" x 17.48" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight : 16.5KG Gross Weight : 18.05KG |
| Power Supply | 1+1 Redundant 800W/550W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac,9.4A/4.72A, 47-63Hz Class I or 240Vdc, 3.5A (800W) 100-127/200-240Vac,7A/3.4A, 47-63Hz Class I or 240Vdc, 3.5A (550W, CPU TDP to up 140W) (240Vdc Only for China) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Optional Items | RAID 90SC05E0-M0UAY0 PIKE II 3008-8i 90SC06G0-M0UAY0 PIKE II 3108-8i-16PD 90SC07N0-M0UAY0 PIKE II 3108-8I/16PD/2G 90SK0000-M77AN0 MINISAS HD TO MINISAS HD//L=85CM/SINGLE PACK(MOQ:1) |
