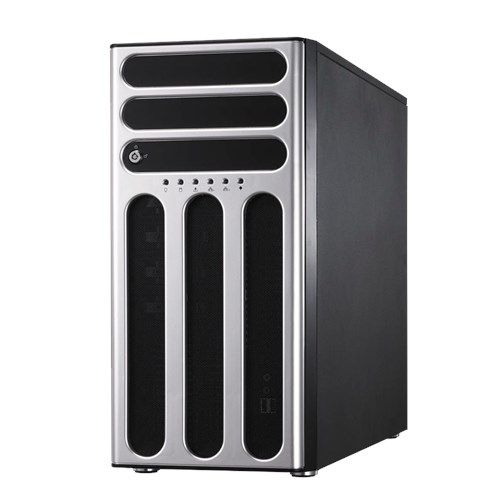

TS300-E9-PS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors *Refer to support page for more information |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C236 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC* Memory Size : 16GB, 8GB, 4GB UDIMM * Refer to support page for more information |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: 4 1 x PCI-E x16 (Gen3 x16 link) + 1x PCI-E x8 (Gen3 x4 link) + 1 x PCI + 1 x MIO Or 1 x PCI-E x16 (Gen3 x8 link) + 1x PCI-E x8 (Gen3 x8 link) + 1x PCI-E x8 (Gen3 x4 link) + 1 x PCI + 1 x MIO |
| Storage | SATA Controller : Intel® C236 8 x SATA3 6Gb/s ports *1 2 x M.2 connector (2280/2260/2242) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| HDD Bays | 4 x 3.5" or 2.5" Hot-swap Storage Bays Optional(additional 4 x HDD bays) |
| Auxiliary Storage FDD/CD/DVD | 3 x 5.25" media bays (Options: No ODD/DVD-RW) |
| Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x Audio out port (with optional MIO card) 1 x MIC in port (with optional MIO card) |
| Rear I/O Ports | 5 x RJ-45 ports (One for ASMB8-iKVM) 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x PS/2 KB/MS port 1 x External Serial Port |
| Switch/LED | Front LED: 1 x Power LED 1 x Location LED 1 x HDD Access LED 1 x Message LED LAN 1-4 LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise Optional ASMB8-iKVM for KVM-over-IP support |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class B) |
| Dimensions | 455mm x 217.5mm x 545mm 17.93" x 8.56" x 21.45" |
| Form Factor | Tower |
| Weight | Net Weight: 15.0 Kg Gross Weight: 18.9 Kg |
| Power Supply | Single 500W 80 PLUS Bronze Power Supply Rating: 100-240V, 10A-6A, 50-60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Note | *1 8 x SATA 6Gb/s ports (4 by miniSAS HD) or SATA signal, gray SATA port will disable when M.2 is SATA signal) *2 2 x internal USB 3.0 connector (Type A USB socket) |
パーツ仕様
| Chassis | T50 5U Pedestal Chassis (13GS1R0AM012-2) | ||||
|---|---|---|---|---|---|
| MB | ASUS P10S-E/4L Server Board (90SB0520-M0XBN0) | ||||
| HDD Backplane | 1 x BP4LX12G-35-T50D (90SC0750-M0XBN0) | ||||
| Front Panel Board | 1 x FPB-TRS8A (90SC00N0-M0XBN0) | ||||
| CPU Heatsink/ Cooler | 1 x CPU Cooler (13G074157020) | ||||
| Power Supply Unit | 1 x PSU ATX 500W 80PLUS BRONZE (0A100-00140400) | ||||
| HDD Tray | 4 x R21A 3-5 HDD TRAY ASSY (13GS1I0AM061-1) | ||||
| Fan | 1 x ESC2000 FRONT FAN (13G074186020) 1 x ESC2000 REAR FAN (13G074186010) |
||||
| Optical Drive | 1 x DVD-RW (17600-00050300) | ||||
| Mounting Rails | Optional: 1 x T55 CHASSIS RAIL TO RACK (13GS0K00M040) | ||||
| Cable | 1 x WIRE CABLE USB 10P TO 10P (14G143083000) 1 x USB3.0 180 TO 90-R L=900MM (14002-00200100) 1 x COM1 CABLE 9P,L:260MM(BRACKET) (14001-00400100) 1 x INTERNAL SAS HD CABLE,L=60CM (14011-00480800) 1 x SATA CABLE 7P 90-180,L:500mm (14G000100101) |
