製品情報

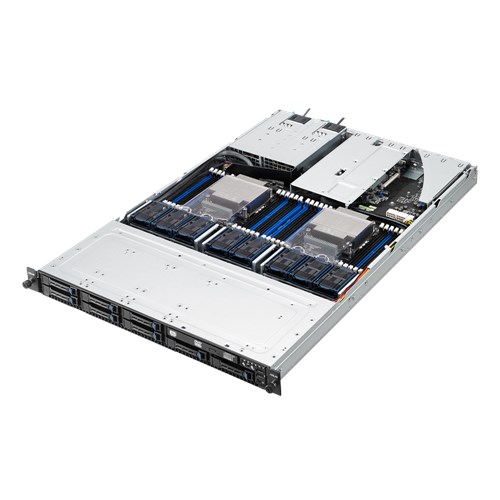

RS700-E8-RS8 V2

製品種別 サーバ
CPU


筐体サイズ 1U
電源仕様
用途/特長
製品説明

製品仕様

Processor / System Bus 2 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-2600 v4 product family (145W) *
Intel® Xeon® processor E5-2600 v3 product family(145W)*
QPI 6.4 / 8.0 / 9.6 GT/s
*Refer to support page for more information
Generation E8
Core Logic Intel® C612 PCH
Memory Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 1536GB LRDIMM
Memory Type :
DDR4 2400 /1866*/2133 /1600 RDIMM
DDR4 2400 /1866*/2133 /1600 LRDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots 2 + 2

1 x PCI-E x16 (Gen3 x16 link), FH, HL
1 x PCI-E x16 (Gen3 x8 link), LP, HL
1 x PCI-E x8 (Gen3 x8 link), proprietary*
1 x OCP Mezzanine (Gen3 x8 link)**

* Support for ASUS PIKE II (optional)
** Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional)
Storage SATA Controller :
Intel® C612
10 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector)
or
9 x SATA 6Gb/s ports(8 by 2 mini-SAS Connector)+1 x M.2 connector
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
12G SAS Support
HDD Bays 8 x 2.5" Hot-swap Storage Bays
1 x M.2 (NGFF 2242)
Auxiliary Storage FDD/CD/DVD 1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW
Networking 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Graphic Aspeed AST2400 with 32MB VRAM
Front I/O Ports 2 x USB 2.0 ports
1 x VGA port
Rear I/O Ports 1 x External Serial Port (COM Port)
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
1 x PS/2 KB/Mouse port
Switch/LED Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED
* LAN3-4 for Mezzazine card use
OS Support Windows® Server 2016
Windows® Server 2012 R2
Windows® Server 2012
Windows® Server 2008 R2
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer

*Subject to change without any notice
Management Solution ASWM Enterprise
On-Board ASMB8-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CE, C-Tick, FCC(Class A)
Dimensions 686mm x 444mm x 44mm
27" x 17.48" x 1.73"
Form Factor 1U
Weight Net Weight: 12.65 Kg
Gross Weight: 19.05 Kg
Power Supply 1+1 Redundant 800W 80PLUS Platinum Power Supply

Rating: 100-127Vac/200-240Vac,9.9A/4.79A ,47-63Hz, Class I
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

パーツ仕様

Chassis R12D Rackmount Chassis (13GS1E0AM025-1)
MB Z10PP-D24 Server board (60SB03U0-SB0A2C)
HDD Backplane 1 x BP8LX12G-25-R10E (60SC06X0-SC0A01)
Front Panel Board 1 x FPB-VGA-R12E (60SC05L0-SC0A01)
Riser Card 1 x RE16L-R12A (60SC00D0-SC0C01)
1 x RE16LE8R-R12E(60SC05M0-SC0A01)
CPU Heatsink/ Cooler 2 x LGA2011 1U SQUARE HP HS (13071-00091400)
Power Supply Unit 2 x PSU 1U RED. 800W 80+ PLATINUM (0A100-00080500)
HDD Tray 8 x R12A 2-5 HDD TRAY ASSY (13GS120AM021-1)
HDD Cage 1 x R12A 2.5 BAY MODULE ASSY (13SV0003AM0211)
Fan 8 x System Fans (40mm x 28mm) (13070-00790000)
Fan Holder 8 x FAN HOUSING (13GS1200P070-1)
8 x FAN DUMMY (13GS0F00P021-1)
16 x RIVET (13G014088000)
16 x SCREW M3.8 *7L(F) B-ZN #2 (13GMCF4W070Z-1)
Air Duct/Mylar 1 x R12D PUMA 24D FANDUCT A (13GS1E00P020-1)
1 x R12D PUMA 24D FANDUCT B (13GS1E00P030-1)
Optical Drive 1 x Slim DVD-RW (17601-00012500)
1 x R10E ODD BEZEL ASSY (13GS1600P031-1)
Mounting Rails 1 x Tool-less Rail Kit (13SV0006AM0811)
Cable 1 x USB3.0 180 TO USB2.0 L=650MM (14002-00340000)
1 x POWER CABLE 8P TO 8P,400MM (14001-00260000)
1 x POWER CABLE 8P TO 8P;L=200MM (14G000610140)
1 x FPB CAB2*8/1*10+1*6+2*10 950MM (14001-00800500)
1 x LAN LED CBL 2*4P TO 1*5P L=900 (14001-00790000)
1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303)
1 x VGA CABLE 2*8 TO 2*8 L=950MM (14019-00010000)
2 x MINI-SAS TO MINI-SAS HD,L=78CM(14011-00480600)
1 x UX21/31 VGA DONGLE ACCESSORY (14001-00220200)
