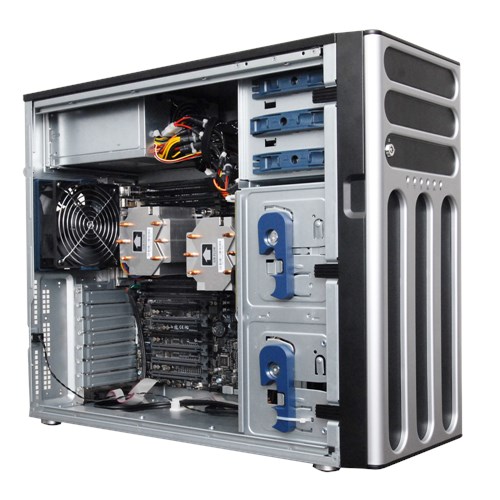

TS700-E8-PS4 V2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (160W) * Intel® Xeon® processor E5-2600 v3 product family(160W)* QPI 6.4 / 8.0 / 9.6 GT/s *Refer to support page for more information |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /1866*/2133 /1600 RDIMM DDR4 2400 /1866*/2133 /1600 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | Total slot:6 4 x PCI-E x16 (Gen3 x16 link), FH, FL 1 x PCI-E x16 (Gen3 x8 link), FH, FL 1 x PCI-E x16 (Gen3 x8 link), FH, HL |
| Storage | SATA Controller : Intel® C612 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) 12G SAS Support |
| HDD Bays | 4 x 3.5" or 2.5" Hot-swap Storage Bays 1 x M.2 (NGFF 22110/2280/2260) |
| Auxiliary Storage FDD/CD/DVD | 3 x 5.25" media bays (Options: No Device / DVD-RW) |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Multi-GPU Support | Support ATI® CrossFireX™ technology, up to Quad CrossFireX Supports NVIDIA® 2-Way Geforce SLI™ technology |
| Front I/O Ports | 1 x Headphone jack 1 x Microphone jack 2 x USB 2.0 ports 2 x USB 3.0 ports |
| Rear I/O Ports | 2 x RJ-45 ports 1 x RJ-45 Mgmt LAN port 4 x USB 3.0 ports 4 x USB 2.0 ports 1 x PS/2 KB/MS port 1 x S/PDIF Out (Optical) 1 x Set of Audio ports (6 Ports) 1 x VGA port |
| Switch/LED | Front Switch/LED: 1 x Power switch 1 x Location LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED 1 x Power LED LAN 1-2 LED Rear Switch/LED: 1 x Q-code Logger button w/ LED 1 x BIOS flashback button w/ LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class B) |
| Dimensions | 455mm x 217.5mm x 545mm 17.91" x 8.54" x 21.45" |
| Form Factor | 5U/Tower |
| Weight | Net Weight: 17.20 Kg Gross Weight: 24.00 Kg |
| Power Supply | Single 1200W 80 PLUS Platinum Power Supply Rating: 114.9-240Vac, 12-8A, 50-60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | T50 5U Pedestal Chassis (13SV0007AM0222) | ||||
|---|---|---|---|---|---|
| MB | Z10PE-D16 WS (90SB04L0-M0XBN0) | ||||
| HDD Backplane | 1 x BP4LX12G-35-T50D (90SC0750-M0XBN0) |
||||
| Front Panel Board | 1 x FPB-TRS8A (90SC00N0-M0XBN0) | ||||
| CPU Heatsink/ Cooler | 2 x INTEL LGA2011 4U 150W COOLER (13071-00091000) | ||||
| Power Supply Unit | 1 x 1200W 80PLUS Platinum Power Supply (0A100-00270200) |
||||
| HDD Tray | 4 x R21A 3-5 HDD MODULE ASSY (13GS1I0AM050-1) | ||||
| HDD Cage | 1 x T50A HDD BOX ASSY (13SV0007AM0212) | ||||
| Fan | 2 x ESC2000 FRONT FAN (13G074186020) 1 x ESC2000 REAR FAN (13G074186010) |
||||
| Optical Drive | 1 x DVD-RW (17600-00050300) | ||||
| Mounting Rails | Optional: 1 x T55 CHASSIS RAIL TO RACK (13GS0K00M040) | ||||
| Cable | 1 x AUDIO CABLE 2*5P TO 2*5P HSG (14G143086002) 1 x WIRE CABLE USB 10P TO 10P (14G143083000) 1 x USB3.0 CABLE CM8 (14001-008900DP) 1 x HDB 15P/F TO DB 9P/M,L:260+150 (14011-00500000) 1 x SATA CABLE 7P 90-180,L:500mm (14G000100101) 1 x SATA TO HD+6PIN L=500MM (14011-00860000) |
