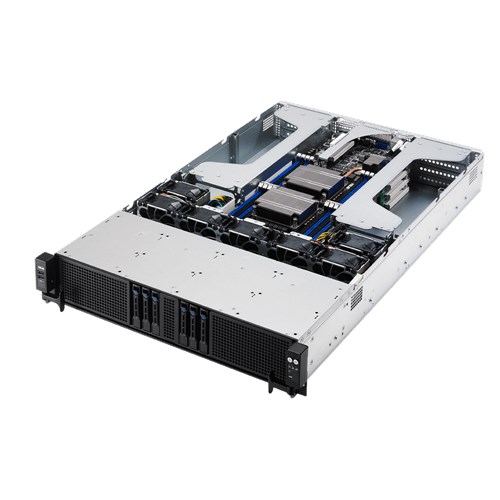

ESC4000 G3S
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family Intel® Xeon® processor E5-2600 v3 product family QPI 6.4 / 8.0 / 9.6 GT/s *Refer to support page for more information |
|---|---|
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /1866*/2133 /1600/1333 RDIMM*1 DDR4 2400 /1866*/2133 /1600/1333 LRDIMM*1 DDR4 2400 /1866*/2133 /1600/1333 NVDIMM*1 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Refer to support page for more information |
| Expansion Slots | Total: 8 + 2 Full-length/Full-height 8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) (Slot CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied) Half-length/Low-profile and ASUS proprietary form factor 1 * PCI-E 3.0 x24 (support with riser card) (1 * PCI-E x16 (x8 Gen3 Link) and 1 * PCI-E x8 (x8 Gen3 Link)) |
| Storage | SATA Controller : Intel® C612 6 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) Support with riser card |
| HDD Bays | 6 x Hot-swap 2.5" HDD Bays |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| InfiniBand | Optional kits: PEM-FDR PEB-10G/57840-2S PEB-10G/57811-1S |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports |
| Rear I/O Ports | 3 x RJ-45 ports (One for ASMB8-iKVM) 2 x USB 3.0 ports 1 x VGA port |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 Enterprise R2 SP1 64-bit RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise Default 1 x ASMB8-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 750mm x 444mm x 87mm (2U) |
| Form Factor | 2U |
| Power Supply | 1+1 Redundant 2000W 80PLUS Platinum Power Supply*; 1100W: 100-120Vac, 12.7-10.5A, 50-60Hz, Class I 1400W: 120-140Vac, 13.5-11.5A, 50-60Hz, Class I 1800W: 200-220Vac, 10.0-9.5A, 50-60Hz, Class I 1980W: 220-230Vac, 10.0-9.8A, 50-60Hz, Class I 2000W: 230-240Vac, 10.0-9.8A, 50-60Hz, Class I 1+1 Redundant 1620W 80PLUS Platinum Power Supply; 1000W: 100-120Vac, 12-10A, 50-60Hz, Class I 1200W: 120-140Vac, 12-10A, 50-60Hz, Class I 1620W: 180-240Vac, 10.5-8A, 50-60Hz, Class I * It is not suggest to use both 1620W and 2000W Power supply simutaneously in the same system. |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x MB Support DVD 1 X ASWM Enterprise DVD 1 x ASMB8 SDVD 1 x Bag of Screws 1 x AC Power Cable 8 x GPU air ducts |
| Optional Items | Second 1620W Redundant Power Supply Module (0A100-00230100) ASUS PEB-10G/57811-1S (90SC05W0-M0UAY0) ASUS PEB-10G/57840-2S (90SC05V1-M0UAY0) ASUS PEM-FDR (90SC05U0-M0UAY0) |
| Note | *1 2133MT/s@1DPC only |
パーツ仕様
| MB | ASUS Z10PG-D16 Server Board | ||||
|---|---|---|---|---|---|
| HDD Backplane | 1 x SAS/SATA Backplane (BP6LX-25-R21E) (90SC0530-M00000) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-R20A) (90-C1SE00-00P0T) | ||||
| USB Board | 1 x Front USB Board (USB-R20A) (90-C1SDZ0-00P0T) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R21E-G3) (90SC04R0-M00000) | ||||
| Riser Card | 1 x Left 4 * PCIe Gen3 x16 slots Riser card (RE16LX4-R21B-G2 ) (90-C1SF50-01P0T) 1 x Right 4 * PCIe Gen3 x16 slots Riser card (RE16RX4-R21B-G2 ) (90-C1SF60-01P0T) 1 x PCI-Ex24 Riser card (RE8LE16R-R21D) (90SC0600-M00000) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00090600) |
||||
| Power Supply Unit | 1 x 1620W Redundant Power Supply (0A100-00230100) (2 x Power Supply Module default for North America) |
||||
| HDD Tray | 6 x Hot-swap 2.5" HDD trays (13GS120AM021-1) |
||||
| Fan | 7 x System Fans (80mm x 38mm) (13G074187000) |
||||
| Air Duct/Mylar | 1 x MB Air Duct Mylar (13SV0005L05011;13GS1U00T010-1) 4 x NVIDIA Tesla /AMD Firepro GPU Air Duct (13GS1U0AM021-2) 4 x Intel Xeon Phi series Co-processor Air Duct (13GS1U0AM050-1) 4 x AMD FAN DUCT MYLAR (13SV0005L12011) |
||||
| Mounting Rails | 1 x Friction rail kit (13SV0006AM0811) | ||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L:140MM (14G000611201) 1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303) 1 x FAN CABLE 4P/M TO 4P/F, L100MM (14G000015410) 8 x VGA POWER CABLE 4PTO6+2P 300MM (14001-01280000) 1 x FPB CAB2*8/1*10+1*6+2*10 750MM (14001-00800400) 2 x INTERNAL MINI SAS HD TO 4SATA (14001-01390400) 1 x USB3.0 180 TO USB2.0 L=650MM (14002-00340000) |
