生産終了

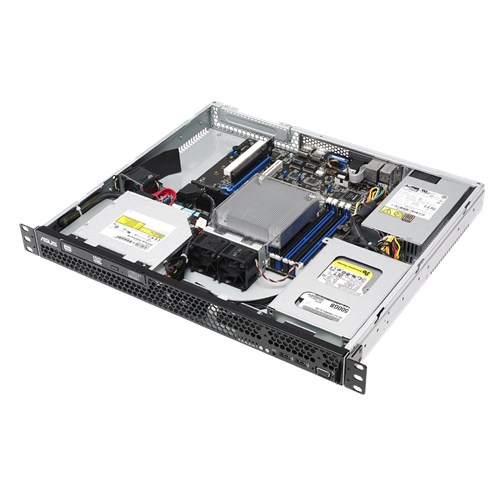

RS100-E9-PI2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors *Refer to www.asus.com for CPU Support list |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C232 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB UDIMM * Please refer to ASUS server AVL for the latest update |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: 1 1 x PCI-E x16 (x16 Gen3 Link) |
| Storage | SATA Controller : Intel® C232 2 x Internal 3.5” HDD 2 x M.2 connector (2280/2260/2242) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1 ) |
| HDD Bays | with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support |
| Auxiliary Storage FDD/CD/DVD | 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports | 1 x External Serial Port 2 x RJ-45 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x PS/2 KB/MS port 1 x RJ-45 ports (One for ASMB8-iKVM)(Optional) |
| Switch/LED | Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-2 LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Citrix XenServer *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise Optional ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class B) |
| Dimensions | 380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" |
| Form Factor | 1U |
| Weight | Net Weight: 5.3 Kg Gross Weight: 10.6 Kg |
| Power Supply | Single 250W 80 PLUS Bronze Power Supply Rating: 100-240Vac,4A ,50-60Hz, Class I |
| Environment | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | ASUS R9 C RS100-E8 CHASSIS (13SV0001AM0211) |
||||
|---|---|---|---|---|---|
| MB | ASUS P10S-M-DC Server Board (90SB05L0-M0XBN0) |
||||
| Front Panel Board | 1 x FPB-R20D (90SC03Z0-M0XBN0) |
||||
| Riser Card | 1 x RE16L-R9A (90SC03Y0-M0XBN0) |
||||
| CPU Heatsink/ Cooler | 1 x CPU Cooler (13070-0022000) |
||||
| Power Supply Unit | 1 x POWER FLEX 250W 80+BRONZE(0A100-00011700) |
||||
| HDD Cage | 2 x R9 C RS100 E8 HDD BKT ASSY (13SV0001AM0111) |
||||
| Fan | 3 x RS500-E8-RS4 FAN 4.0*2.8 1.0A(13070-00790000) |
||||
| Fan Holder | 12 x R9C RS100 E8 FAN SNAP RIVET//PINGOOD/SRD-3A-SFB (13090-00150000) 4 x R09 V2.0 AC 6#32 WASHER SCREW (13GS0T00M590-1) |
||||
| Air Duct/Mylar | 1 x R9 C RS100-E9 FAN DUCT (13SV0001L15011) |
||||
| Optical Drive | 1 x SLIM DVD-RW (17601-00012500) 1 x R10E ODD BEZEL ASSY (13GS1J0AP010-1)" |
||||
| Mounting Rails | 1 x RAIL KIT (13GS0T00M601-1) |
||||
| Cable | 1 x FPB CAB2*8/1*10+1*6+2*10 750MM (14001-00800400) 1 x VGA CABLE 2*8 TO 2*8 L=700MM (14002-00210000) 1 x USB3.0 2*10P 180 TO 90,680MM (14002-00200000) 1 x SATA CABLE 180 TO 270;L=270mm (14G000112550) 1 x SATA CABLE 180 TO 270;L=680mm (14G000112540) 1 x SLIN SATA CABLE 7+6P TO 7&4P//ASLINK/90ZLASAT0136A (14G000112302) |
