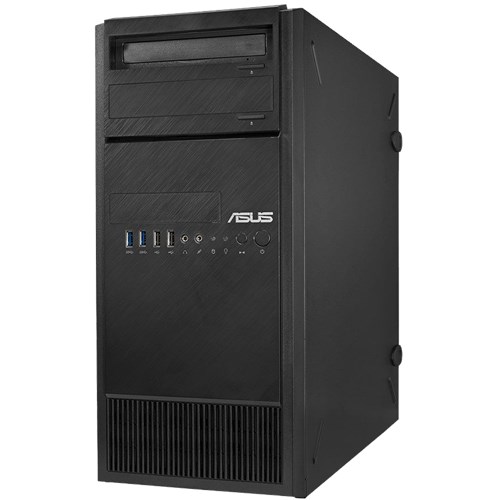

TS100-E9-PI4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors *Refer to support page for more information |
|---|---|
| Generation | E9 |
| Core Logic | Intel® C232 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB UDIMM * Refer to support page for more information |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: 6 1 x PCI-E x16 (Gen3 x16 Link) 1 x PCI-E x8 (Gen3 x4 Link) 4 x PCI 32 bit/33 MHz 1 x MIO slot |
| Storage | SATA Controller : Intel® C232 6 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) |
| HDD Bays | 3 x Internal 3.5”HDD Bays 1 x Internal 2.5”Disk Bay |
| Auxiliary Storage FDD/CD/DVD | 2 x 5.25" media bays (Options: No ODD/DVD-RW) |
| Networking | 2 x Intel® I210AT |
| Graphic | Aspeed AST1400 with 64MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports 2 x USB 3.0 ports 1 x Microphone port (with optional MIO card) 1 x Headphone port (with optional MIO card) |
| Rear I/O Ports | 1 x External Serial Port 2 x RJ-45 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x PS/2 KB/MS port |
| Switch/LED | Front Switch/LED: 1 x Power Switch 1 x Reset Switch 1 x Power LED 1 x HDD Access LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class B) |
| Dimensions | 423mm x 190mm x 435mm 16.65" x 7.48" x 17.13" |
| Form Factor | Tower |
| Weight | Net Weight: 10.32 Kg Gross Weight: 14.95 Kg |
| Power Supply | Single 300W 80 PLUS Bronze Power Supply Rating: 100-240V, 6/3A, 50-60Hz, Class I |
| Environment | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
| Optional Items | Smart Card Reader Optional Anti-Virus CD pack DVD-RW/DVD-ROM |
パーツ仕様
| Chassis | ASUS T11 B CHASSIS (13GS230AM061-1) | ||||
|---|---|---|---|---|---|
| MB | ASUS P10S-X Server Board (90SB05B0-M0XBN0) | ||||
| CPU Heatsink/ Cooler | 1 x LGA1156 COOLER(13G074157020) | ||||
| Power Supply Unit | 1 x PSU 300W ERP2013 80+ BRONZE(0A100-00150200) | ||||
| Fan | 1 x ARX 12025 2BALL FAN(13G074166000) | ||||
| Optical Drive | 1 x DVD-RW (17600-00050200) | ||||
| Cable | 1 x SATA CABLE 7P 90-180,L:500mm(14G000100101) 1 x SATA 6G CABLE 7P G/F BLA 500MM(14G000130233) |
