生産終了

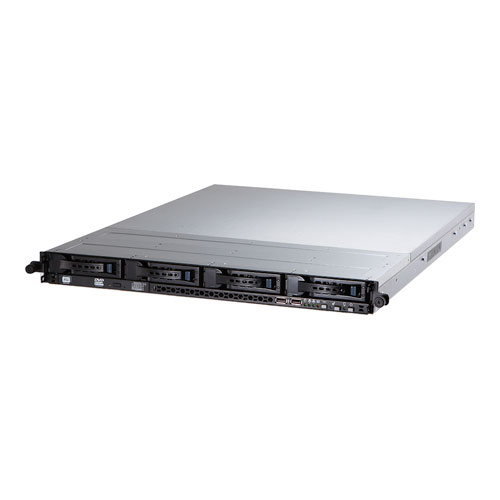

RS300-E7/PS4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Xeon® E3-1200 v2 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G800/G600 Processor Family Intel® Celeron™ G500/G400 Processor Family *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C204 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC*1 Memory Size : 1GB, 2GB, 4GB, 8GB UDIMM |
| Expansion Slots | 1 x PCI-E x16 (Gen3*/Gen2 x8 link) (Full-Height/HL) 1 x PCI-E x8 (Gen3*/Gen2 x8 link) (Full-Height/HL) * Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor |
| Storage | SATA Controller : Intel® C204 2 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) |
| HDD Bays | 4 * Hot-swap 3.5" HDD Bays |
| Auxiliary Storage FDD/CD/DVD | 1 * Slim-type Optical Drive Bay Options: No Device / DVD-RW (DVD-RW default for North America) |
| Networking | 4 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2050 with 16MB VRAM |
| On Board I/O | 1 x External Serial Port 5 x RJ-45 ports 4 x USB 2.0 ports 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.5 32/64-bit SuSE® Linux Enterprise Server 10 32/64-bit SuSE® Linux Enterprise Server 11 32/64-bit *(Subject to change without any notice) |
| Management Solution | Software: ASWM Enterprise 2.0 Out of Band Remote Management: Optional ASMB5-iKVM for KVM-over-IP support |
| Safety | US/Canada (UL1950-CSA950) Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) Europe (TUV) |
| EMI | US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Australia (C-TICK) Taiwan (BSMI) China (CCC) |
| Dimensions | 615mm * 444mm * 43.4mm |
| Form Factor | 1U |
| Weight | 15Kg |
| Power Supply | 350W 80PLUS Single Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x RS300-E7 User's Guide 1 x ASUS ASWM Enterprise User's Guide (15060-01800000) 1 x ASUS Auto Installation Guide 1 x Bag of Screws 1 x AC Power Cable 1 x ASUS Auto Installation DVD (15091-06620000) 1 x RS300-E7 Support DVD (15091-06600200) 1 x ASWM ENTERPRISE DVD (15091-02400000 ) |
| Optional Items | ASMB5-iKVM Remote management card (61-C1SEK0-01) Slim-type Optical Drive (17G14113400N) (DVD-RW default for North America) ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) |
| Note | *1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor |
パーツ仕様
| MB | ASUS P8B-E/4L Server board (60SB0070-MB0A17) | ||||
|---|---|---|---|---|---|
| HDD Backplane | 1 x SAS/SATA Backplane (BP4LX-R10A) (60SC00G1-SC0A01) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05) | ||||
| Riser Card | 1 x PCI-E Riser Card (RE16LE8R-R10A) (60SC00Q0-SC0A01) | ||||
| CPU Heatsink/ Cooler | 1 x CPU Heatsink (13G074164001) | ||||
| Power Supply Unit | 1 x 350W Single Power Supply (04G1850142H0) | ||||
| HDD Tray | 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1) | ||||
| Fan | 4 x System Fans (40mm x 28mm) (13G074108060) | ||||
| Fan Holder | 4 x Fan Holder (13GS1200P070-1 + 13GS0F00P021-1) | ||||
| Optical Drive | 1 x Slim DVD-RW (Optional) (17G14113400N) (DVD-RW default for North America) |
||||
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) | ||||
| Cable | 1 x COM1 CABLE 9P,L=260MM (14G00002009H) 1 x MINI SATA 13P TO 7P+4P,L=390MM (14G000114510) 1 x SATA 7P*2 TO 7P*2,L=350MM (14G000128011) 1 x USB CABLE 2*4 TO 2*5,L=850MM (14G000509430) 1 x W.H CABLE 6P TO 6P,L= 550MM (14G03001120C) 1 x W.H CABLE 10P TO 8P,L=700MM (14G030028210) 1 x FPB CBL 2*8 TO 2*10+1*,L=6750MM (14G030042840) |
