生産終了

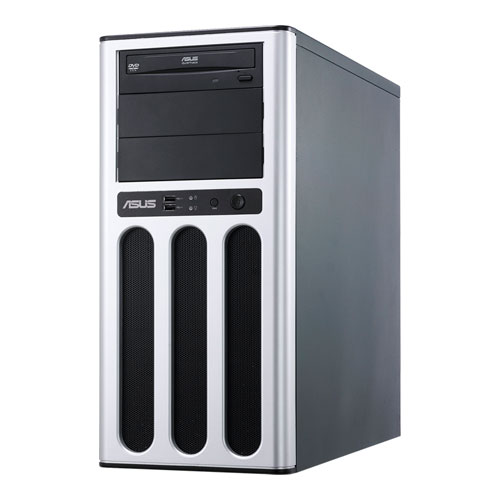

TS100-E7/PI4
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Core™ G8X0 Processor Family Intel® Core™ G6X0 Processor Family Processor *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C202 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : Dual Channel, DDR3, 1333/1066, UDIMM Memory Size : 1GB, 2GB, 4GB, 8GB UDIMM |
| Expansion Slots | Total Slot : 6 Slot Type: 1 x PCI-E x16 (Gen2 X16 Link) (Full-Height/Full-Length) 1 x PCI-E x8 (Gen2 X4 Link) () 2 x PCI-E x1 () 2 x PCI 32bit/ 33MHz () |
| Storage | SATA Controller : Intel® C202 6 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
| HDD Bays | 4 x Internal 3.5" |
| Auxiliary Storage FDD/CD/DVD | 3 * 5.25" media bays (Options: No Device / DVD-RW) |
| Networking | 2 x Intel® 82574L |
| Graphic | XGI® Z9s with 8MB VRAM |
| On Board I/O | 1 x External Serial Port 2 x RJ-45 ports 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.5 32/64-bit SuSE® Linux Enterprise Server 10 32/64-bit SuSE® Linux Enterprise Server 11 32/64-bit |
| Anti-virus Software | Optional Anti-Virus CD Pack |
| Safety | Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) Taiwan (BSMI) China (CCC) |
| Dimensions | 436.8mm x 200mm x 478.8mm |
| Weight | 15Kg |
| Power Supply | 300W 80PLUS Single Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Optional Items | CPU Heatsink 5.25" Optical Device |
パーツ仕様
| MB | P8B-X/MR(80-MSVDG5-G0A01) | ||||
|---|---|---|---|---|---|
| CPU Heatsink/ Cooler | COOLER FOR LGA1156 in TOWER SERVER(13G074157020) | ||||
| Power Supply Unit | 300W Single Power Supply Unit(04G1850151B0) | ||||
| Fan | Rear Fan 120*120*25mm(13G074166000) | ||||
| Cable | SATA 7Pin TO 7Pin, L=420mm(14G000107080) SATA 7Pin TO 7Pin, L=500mm(14G000100101) USB CABLE 10Pin TO 10Pin, L=350mm(14G143083000) |
||||
| Front Panel Board | USB-R9(80-C1SBQ5-00A03) |
