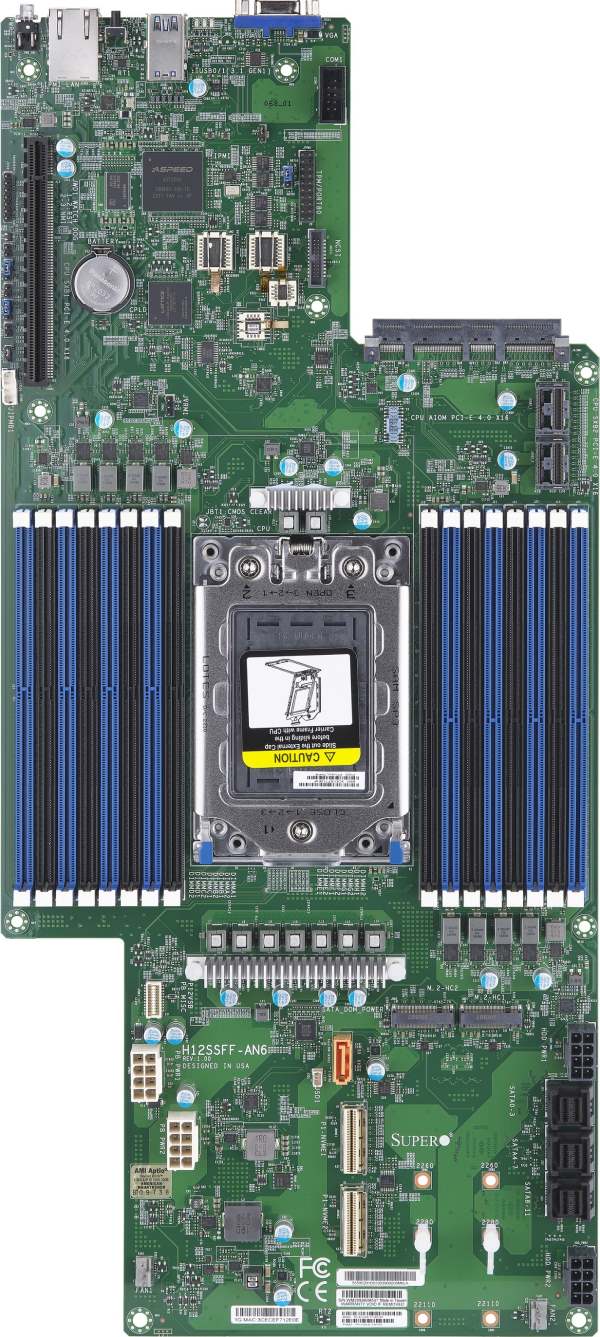

H12SSFF-AN6
| 製åç¨®å¥ | ãã¶ã¼ãã¼ã |
|---|---|
| CPUã½ã±ããæ° | |
| CPU | ã ã |
| CPUã½ã±ãã | LGA4094 (Socket SP3) |
| ãã¶ã¼ãã¼ããµã¤ãº | Proprietaryï¼ç¬èªè¦æ ¼ï¼ |
| 製å説æ |
AMD第3ä¸ä»£EPYC 7003ã·ãªã¼ãºã«ã¤ãã¦
Supermicroã«ã¤ãã¦
製åä»æ§
| Product SKUs | MBD-H12SSFF-AN6 | H12SSFF-AN6 (for server SKUs only) |
|---|---|
| ãã©ã¼ã ãã¡ã¯ã¿ã¼/å¤å½¢å¯¸æ³ | Form Factor | Proprietary FatTwin™ |
| Dimensions | 8.441" x 18.724" |
| Processor/Chipset | CPU | Single AMD EPYC™ 7002 Series Processor Socket SP3 |
| Cores | Up to 64 Cores |
| Chipset | System on Chip |
| ã¡ã¢ãª | Memory Capacity | 16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs 8-channel memory bus |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| ãªã³ãã¼ãããã¤ã¹ | SATA | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC |
| Network Controllers | 1 PCI-E 4.0 x16 AIOM LAN Networking Slot ATEN IPMI (Dedicated) from ASPEED AST2600 BMC |
| VGA | ASPEED AST2600 BMC |
| æ¨æºã¤ã³ã¿ã¼ãã§ã¼ã¹ | SATA | 12 SATA3 (6 Gbps) ports |
| NVMe | 2 internal NVMe ports |
| LAN | Provided via AIOM 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (front) |
| VGA | 1 VGA port (front) |
| Others | 1 COM port (header) 1 SuperDOM power connector 1 TPM 1.2/2.0 header |
| æ¡å¼µã¹ããã | PCI-Express | 1 PCI-E 4.0 x16 Right Riser Slot 1 PCI-E 4.0 x16 Left Riser Slot 1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| M.2 | Interface: 2 SATA/PCI-E 4.0 x4 Form Factor: 2260, 2280, 22110 Key: M-key |
| Chassis ( Optimized for H12SSFF-AN6) | 4U | SCF418IF4-R2K20BP |
| Server(s) (with H12SSFF-AN6) | Model(s) | AS -F1114S-FT |
| BIOS | BIOS Type | AMI 256Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
| ããã¼ã¸ã¡ã³ã | Software | Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI Power Management Power-on mode control for AC power loss recovery |
| ã·ã¹ãã ç£è¦æ©è½ | CPU | Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby CPU switching voltage regulator |
| FAN | Up to 3 fan status tachometer monitoring Up to 3x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 3x Fan connectors I²C Temperature Sensing Logic |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection Chassis Intrusion Header |
| åä½ç°å¢/ã³ã³ãã©ã¤ã¢ã³ã¹ | Environmental Specifications | Operating Temperature:  10°C to 35°C (50°F to 95°F) Non-operating Temperature:  -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:  8% to 90% (non-condensing) Non-operating Relative Humidity:  5% to 95% (non-condensing) |
| Retail Pack List | H12SSFF-AN6 Motherboard |
ãã¼ãä»æ§
| ãªãã·ã§ã³ãã¼ããªã¹ã | |||
|---|---|---|---|
| åçª | æ°é | å 容 | |
| TPM security module | AOM-TPM-9655V | - | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; |
| AOM-TPM-9655V-S | - | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT | |
| AOM-TPM-9665V | - | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | |
| AOM-TPM-9665V-S | - | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT | |
