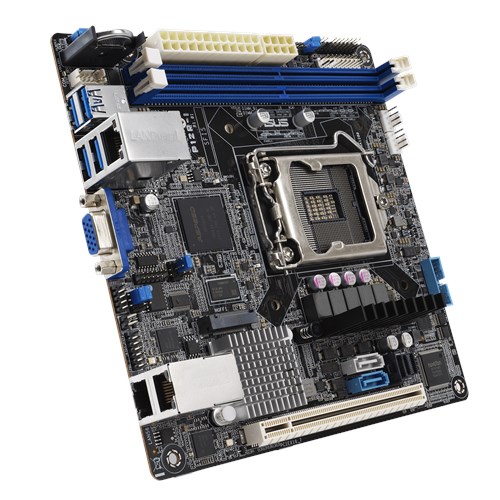

P12R-I
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1200 (Socket H5) |
| マザーボードサイズ | Mini-ITX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1200 Intel® Pentium™ processors Intel® Xeon® E Processors |
|---|---|
| Core Logic | Intel® C252 Chipset |
| Memory |
Total Slots : 2 (2 Channels) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 3200/2933/2666 UDIMM Memory Size : 32GB, 16GB, 8GB, 4GB * Refer to support page for more information |
| Expansion Slots | Total Slot : 1 Slot Location 7 : PCI-E x16 |
| Form Factor | Mini ITX (6.5"x6.5", 165mm x 165mm) |
| Storage |
Storage Controller : 6 x SATA3 6Gb/s ports *1 1 x M.2 connector (2280/2260/2242) *2 SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2600 with 64MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 4 x USB3.2 Gen1 ports 1 x USB3.2 Gen1 header 2 x Fan Header , 4pin 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header |
| Back I/O Ports | 4 x USB 3.2 Gen 1 1 x VGA Port (VGA from BMC) 2 x GbE LAN + 1 x Mgmt LAN |
| Management Solution | ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet |
| Weight | Gift Box (1-in-1) Net Weight : 0.52 KG Gross Weight : 1.1 KG Bulk Pack (10-in-1) Net Weight : 3.66 KG Gross Weight : 5.8 KG |
| Environment | Operation temperature: 10°C ~ 50°C* Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. |
| Accessories | Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 |
| Monitoring | CPU Temperature Fan RPM |
| Note | *1 4 by 1 mini-SAS HD *2 1 x M.2 connector (NGFF 2280, PCI-E Gen4 X 4 link or SATA signal, gray SATA port will disable when M.2 is SATA signal) |
