生産終了

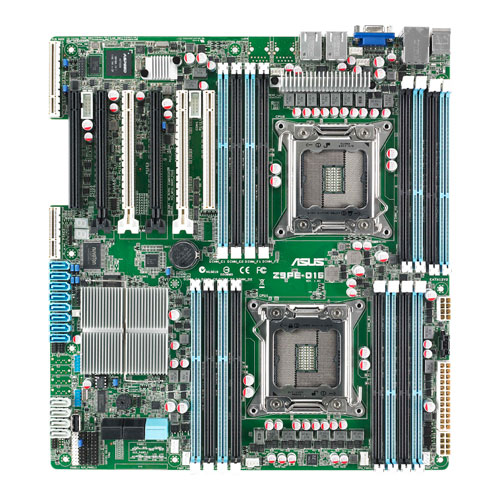

Z9PE-D16/2L
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | Extended ATX (SSI EEB) |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family Intel® Xeon® processor E5-2600 v2 product family QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM Memory Type : DDR3 1866*/1600/1333/1066 RDIMM DDR3 1866*/1333/1066 UDIMM DDR3 1866*/1333/1066 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Total Slot : 6 Slot Location 1 : PCI-E x16 (Gen3 X8 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6 : PCI-E x16 (Gen3 X8 Link), MIO supported Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location# |
| Form Factor | EEB (12"x13") |
| ASUS Features | Fan Speed Control Rack Ready (Rack and Pedestal Dual Use) ASWM Enterprise |
| Storage | SATA Controller : Intel® C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel® C602-A SCU 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card ASUS PIKE 2308 8-port SAS 6G RAID card |
| Networking | 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x Management Connector , Onboard socket for management card 2 x USB pin header , Up to 4 Devices 1 x Internal A Type USB Port 8 x Fan Header , 4pin 1 x Chassis Intruder 2 x Serial Port Header 2 x SMBus |
| Back I/O Ports | 2 x External USB Port 1 x VGA Port 2 * GbE LAN + 1 * Mgmt LAN 1 x PS/2, 1 KB/mouse |
| Management Solution | ASWM Enterprise ASMB6-iKVM for KVM-over-Internet |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 10 x SATA Data Cables 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide 1 x USB to SATA DOM Power cable Bulk Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide |
| Product SKUs | Standard Gift Box Pack with ASMB6-ikvm Standard Bulk Pack with ASMB6-ikvm |
| Monitoring | CPU Temperature Fan RPM |
| Note | * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to www.asus.com for latest momory AVL update * Refer to ASUS Server AVL for latest update. ** Specifications are subject to change without notice. |
