生産終了

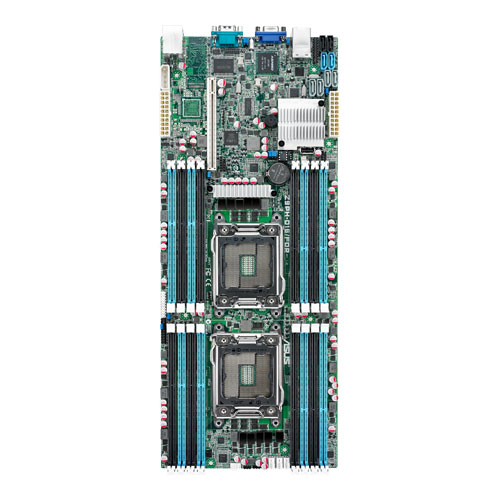

Z9PH-D16
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | Proprietary（独自規格） |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family Intel® Xeon® processor E5-2600 v2 product family QPI 6.4 / 7.2 / 8.0 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C602-A / C602-J PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM Memory Type : DDR3 1866*/1600/1333/1066 RDIMM DDR3 1866*/1600/1333/1066 UDIMM DDR3 1866*/1600/1333/1066 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM |
| Expansion Slots | Total Slot : 1 Slot Location 1 : PCI-E x16 (Gen3 X16 Link) |
| Form Factor | Half SSI (6.8"x16.7") |
| ASUS Features | FAN speed control Rack Optimized (Dedicated for Rack) ASWM Enterprise |
| Storage | SATA Controller : Intel® C602-A/C602-J 2 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel® C602-A SCU 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card ASUS PIKE 2208 8-port SAS 6G HW RAID card ASUS PIKE 2308 8-port SAS 6G RAID card |
| Networking | 2 x Intel Server class GbE LAN + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x TPM header 2 x PSU Power Connector (20-pin) 1 x Management Connector , Onboard socket for management card 1 x Internal A Type USB Port 1 x USB pin header , Up to 2 Devices 4 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder |
| Back I/O Ports | 1x External Serial Port 2x External USB Port 1x VGA Port 2x RJ-45 + 1 Management Port |
| Management Solution | ASWM Enterprise ASMB6-iKVM for KVM-over-Internet |
| Regulatory Compliance | CE, FCC(Class A) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 2 x Thermal sensor cable 1 x ASUS Mainboard Support CD 1 x ASWM Enterprise SDVD 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide Bulk Pack : 1 x User's Guide 2 x Thermal sensor cable 1 x ASUS Mainboard Support CD 1 x ASWM Enterprise SDVD 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide |
| Product SKUs | Standard Gift Box Pack with ASMB6-ikvm Standard Bulk Pack with ASMB6-ikvm |
| Monitoring | CPU Temperature Fan RPM |
| Note | * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to www.asus.com for latest momory AVL update *1 Refer to ASUS Server AVL for latest update. *2 Specifications are subject to change without notice. |
