生産終了

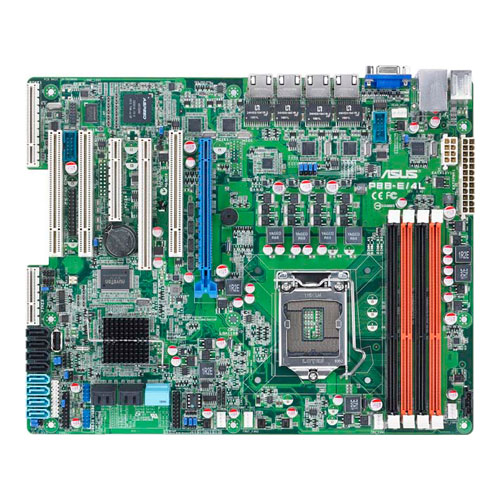

P8B-E/4L
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1155 Intel® Celeron™ G500/G400 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Xeon® processor E3-1200 product family Intel® Pentium™ G800/G600 Processor Family Intel® Xeon® processor E3-1200 v2 product family *Refer to support page for more information |
|---|---|
| Core Logic | Intel® C204 Chipset |
| Memory | Memory Size : 1GB, 8GB, 4GB, 2GB UDIMM Capacity : Maximum up to 32GB UDIMM Total Slots : 4 (2-channel) Memory Type : DDR3 1600/1066/1333 UDIMM with ECC*1 |
| Expansion Slots | Additional Slot 1 : PIKE Slot for Stroage expansion Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 6 : PCI-E x16 Auto switch to x8 link if slot 4 is occupied, (Gen3 X16 Link) *2 Total Slot : 6 Slot Location 4 : PCI-E x16 (Gen3 X8 Link) *2 Slot Location 5 : PCI 32bit/33MHz Follow SSI Location# |
| Form Factor | ATX (12"x9.6", 305mm x 244mm) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage | SAS/SATA Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) SATA Controller : Intel® C204 LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 1, 10, 5, 0 ) 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports |
| Networking | 4 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2050 with 16MB VRAM |
| On Board I/O | 1 x SMBus 1 x Management Connector , Onboard socket for management card 5 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Chassis Intruder 1 x TPM header 2 x Serial Port Header 1 x Internal A Type USB Port 2 x USB pin header , Up to 4 Devices 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) |
| Back I/O Ports | 2 x External USB Port 1 x VGA Port 4 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | ASWM Enterprise Optional ASMB5-iKVM for KVM-over-Internet |
| Regulatory Compliance | FCC(Class B), C-Tick, CE |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 4 x SATA 3G Cable(s) 2 x SATA 6G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155 |
| Product SKUs | Standard Gift Box Pack Standard Bulk Pack |
| Note | *1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor *2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor |
