生産終了

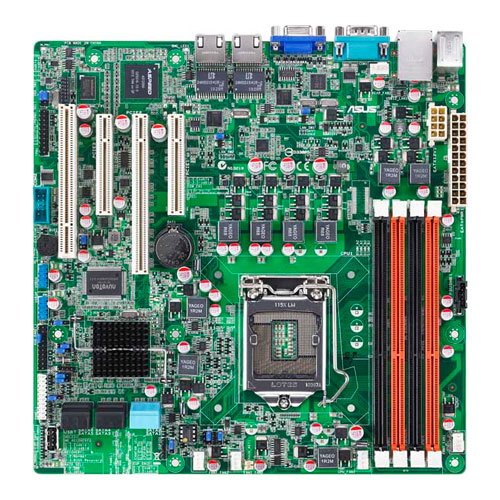

P8B-M
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | Micro-ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Core™ G8X0 Processor Family Intel® Core™ G6X0 Processor Family Processor |
|---|---|
| Core Logic | Intel® C204 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3 Memory Size : |
| Expansion Slots | Total Slot : 4 Slot Location 4 : PCI 32bit/33MHz Slot Location 5 : PCI-E x8 (X4 Link) Slot Location 6 : PCI-E x16 Slot Location 7 : PCI-E x8 (X4 Link) |
| Form Factor | 9.6 " x 9.6 " Inch |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage | SATA Controller : 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2050 with 16MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x USB connector 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 1 x Serial Port Header |
| Back I/O Ports | 1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | Out of Band Remote Management:Optional ASMB5-iKVM for KVM-over-Internet |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 4 x SATA 3G Cable(s) 2 x SATA 6G Cable(s) 1 x Plate for LGA1155 |
| Product SKUs | Standard Gift Box Pack Standard Bulk Pack |
| Monitoring | CPU Temperature Fan RPM |
