生産終了

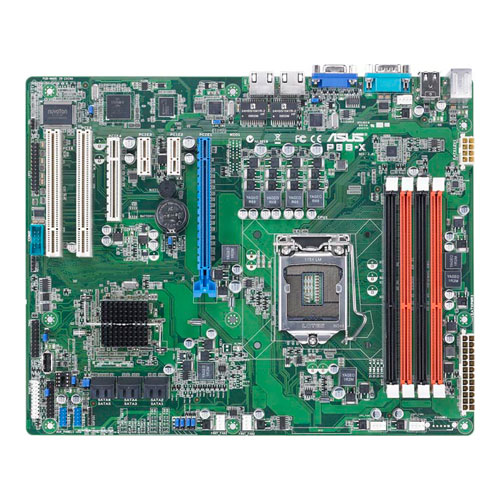

P8B-X
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | *Refer to support page for more information Intel® Xeon® processor E3-1200 product family Intel® Xeon® processor E3-1200 v2 product family Intel® Celeron™ G500/G400 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G800/G600 Processor Family 1 x Socket LGA1155 |
|---|---|
| Core Logic | Intel® C202 Chipset |
| Memory | Total Slots : 4 (2-channel) Memory Type : with ECC DDR3 1333/1600/1066 UDIMM*1 Memory Size : 2GB, 1GB, 8GB, 4GB UDIMM Capacity : Maximum up to 32GB UDIMM |
| Expansion Slots | Slot Location 1 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 5 : PCI-E x1 Slot Location 2 : PCI 32bit/33MHz Follow SSI Location# Slot Location 6 : PCI-E x16 *2 Total Slot : 6 Slot Location 4 : PCI-E x1 |
| Form Factor | ATX (12"x9.6", 305mm x 244mm) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage | SATA Controller : Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 5, 0, 10, 1 ) 6 x SATA2 3Gb/s ports Intel® C202 |
| Networking | 2 x Intel® 82574L |
| Graphic | XGI® Z9s with 64MB VRAM *3 Aspeed AST1100 with 64MB VRAM *4 |
| On Board I/O | 2 x USB pin header , Up to 4 Devices 1 x Chassis Intruder 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB connector 1 x Serial Port Header 1 x TPM header 5 x Fan Header , 4pin |
| Back I/O Ports | 1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Regulatory Compliance | C-Tick, CE, FCC(Class B) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 6 x SATA 3G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155 |
| Product SKUs | Standard Bulk Pack Standard Gift Box Pack |
| Monitoring | Fan RPM CPU Temperature |
| Note | *1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor *2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor *3 XGI® Z9s with 64MB VRAM (REV1.0x) *4 ASPEED® AST1100 with 64MB VRAM (REV2.0x) |
