製品情報

生産終了

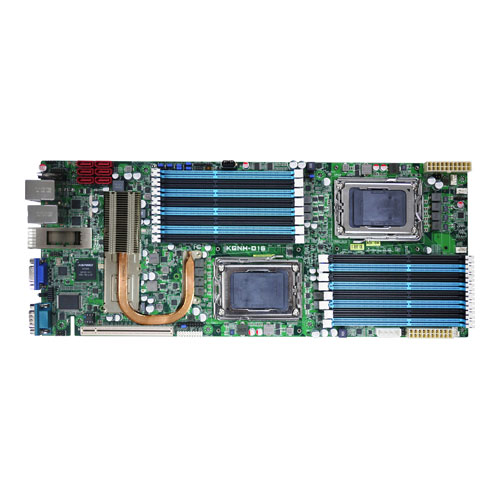

KGMH-D16/QDR

製品種別 マザーボード
CPUソケット数
CPU
CPUソケット LGA1944 (Socket G34)
マザーボードサイズ Proprietary(独自規格)
製品説明

製品仕様

Processor / System Bus 2 x Socket G34 compatible
AMD Opteron™ 6100 series
AMD Opteron™ 6200 series
AMD Opteron™ 6300 series
HyperTransport™ Technology 3.0
6.4 GT/s per link (dual link)
*Please refer to overview for details
Core Logic AMD SR5670
AMD SP5100
Mellanox ConnectX MT25418 QDR 40Gbps controller
Memory Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 256GB RDIMM/Maximum up to 64GB UDIMM
Memory Type :
DDR3, 800/1066/1333/1600, UDIMM*
DDR3, 800/1066/1333/1600, RDIMM*
Memory Size :
1GB, 2GB, 3GB, 4GB, 8GB, 16GB RDIMM
1GB, 2GB, 4GB UDIMM
Expansion Slots Total Slot : 1
Slot Location 1 : PCI-E x16 (Gen2 X16 Link)
Form Factor Half SSI (6.8"x16.7")
ASUS Features ASWM2.0
FAN speed control
Rack Optimized (Dedicated for Rack)
Storage SATA Controller :
6 x SATA2 300MB/s
Networking 2 x Intel® 82574L + 1 x Mgmt LAN
Graphic Aspeed AST2050 with 8MB VRAM
On Board I/O 2 x PSU Power Connector (20-pin)
1 x Management Connector , Onboard socket for management card
1 x USB connector
4 x Fan Header , 4pin
2 x SMBus
1 x Internal A Type USB Port
Back I/O Ports 1 x External Serial Port
2 x External USB Port
1 x VGA Port
1 x RJ-45 2 + 1 Management Port
QSFP port
Management Solution Software: ASWM2.0
Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet
Regulatory Compliance CE, FCC(Class A)
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
Accessories Gift Box Pack :
1 x User's Guide
2 x Thermal sensor cable
1 x ASUS Mainboard Support CD
1 x I/O Shield
6 x SATA 3G Cable(s)
Bulk Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
Monitoring CPU Temperature
Fan RPM
Note * DDR3 1600 can only be supported with AMD Opteron™ 6300/6200 series processor
