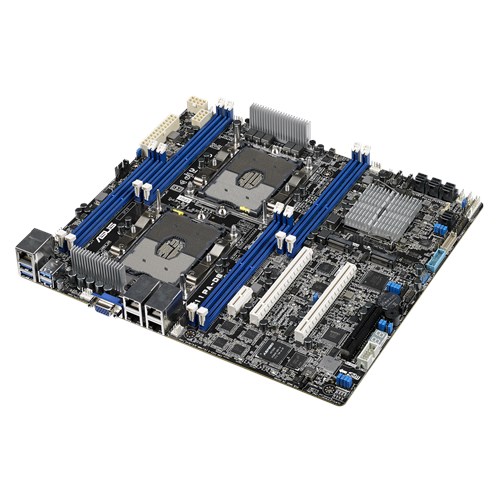

Z11PA-D8
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA3647 (Socket P) |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) *Refer to support page for more information UPI (10.4 GT/s) |
|---|---|
| Core Logic | Intel® Lewisburg PCH C621 |
| Memory | Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 1024GB LR-DIMM 3DS Memory Type : 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | Total Slot : 3 Slot Location 1 : PCI-E x8 Slot Location 3 : PCI-E x16 Slot Location 5 : PCI-E x16 Slot Location 6 : MIO Slot for Audio card |
| Form Factor | CEB (12"x10.5", 305mm x 267mm) |
| ASUS Features | ASUS Fan Speed control technology ASUS Control Center |
| Storage | SATA Controller : Intel® C621 12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) 4 SATA3 6Gb/s port by 1miniSAS connector (Marvell 88SE9230) Intel®VROC (For Linux/Windows) (Support Software RAID ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card |
| Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 8 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED |
| Back I/O Ports | 4 x USB 3.0 ports 1 x VGA port 4 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED |
| Management Solution | ACC(ASUS Control Center) Onboard ASMB9-iKVM for KVM-over-Internet |
| Environment | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% (Non condensing) |
| Weight | Gift Box (1-in-1) Net Weight : 1.24 KG Gross Weight : 2.32 KG Bulk Pack (10-in-1) Net Weight : 1.24 KG Gross Weight : 16.26 KG |
| Accessories | I/O Shield 1 x Supporting DVD 2 x LGA3647 carrier |
| Monitoring | CPU Temperature Fan RPM |
