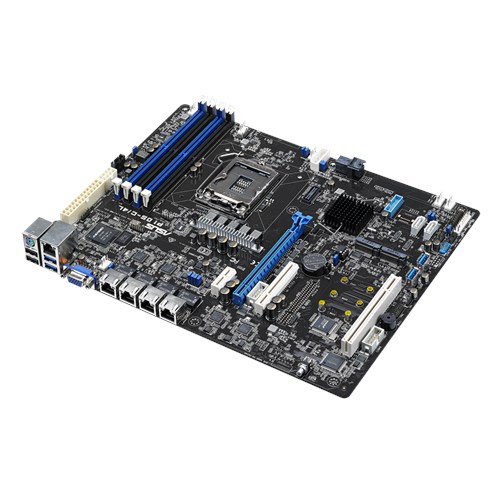

P10S-C/4L
製品種別 | マザーボード |
---|---|
CPUソケット数 | |
CPU | |
CPUソケット | LGA1151 (Socket H4) |
マザーボードサイズ | ATX |
製品説明 |
製品仕様
Processor / System Bus | 1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors |
---|---|
Core Logic | Intel® C232 Chipset |
Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB * Refer to support page for more information |
Expansion Slots | Total Slot : 3 Slot Location 1 : PCI 32bit/33MHz Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card Follow SSI Location# |
Form Factor | ATX (12"x9.6", 305mm x 244mm) |
ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
Storage | SATA Controller : Intel® C232 6 x SATA3 6Gb/s ports *1 2 x M.2 connector (2280/2260/2242) *2 SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
Graphic | Aspeed AST2400 with 32MB VRAM |
On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 2 x USB connector*3 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x Serial Port Header 1 x Device Power Connector*4 1 x VGA Header 2 x M.2 Connector 1 x Onboard header for optional management card |
Back I/O Ports | 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 4 x GbE LAN + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
Management Solution | ASWM Enterprise Optional ASMB8-iKVM for KVM-over-Internet |
Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
Weight | Gift Box Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 7 KG Gross Weight : 9.5 KG |
Accessories | Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 2 x SATA 6G cables 1 x Plate for LGA1151 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1151 |
Monitoring | CPU Temperature Fan RPM |
Note | *1 4 by miniSAS HD *2 2 x M.2 (NGFF 2280/2260/2242, PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal) *3 2 x USB 3.0 connector (Type A USB socket) *4 4-pin power connector |
