生産終了

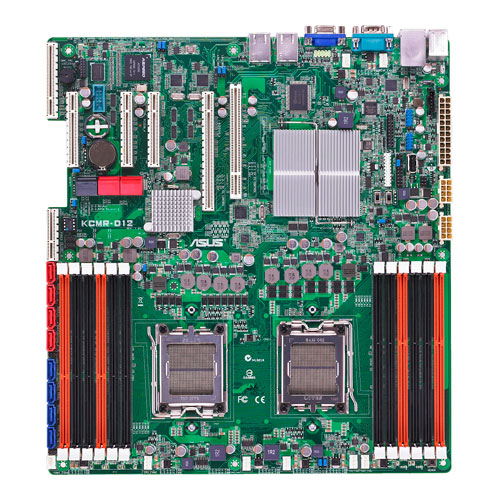

KCMR-D12
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1207 (Socket C32) |
| マザーボードサイズ | Extended ATX (SSI EEB) |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 * socket C32 (LGA 1207) 4/6 Core AMD Opteron™ 4100 series HyperTransport™ Technology 3.0,6.4 GT/s per link (dual link) |
|---|---|
| Core Logic | AMD SR5670 AMD SP5100 |
| Form Factor | 12 " x 13" |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM2.0 |
| Memory | Total Slots: per CPU 12 (2-channel) Capacity: (RDIMM); Maximum up to 32GB (UDIMM) Maximum up to 128GB Memory Type: DDR3 1066/1333 UDIMM with ECC/ non ECC; DDR3 667/800/1066/1333 RDIMM Memory Size: 1GB 2GB 4GB (UDIMM); 1GB, 2GB, 4GB, 8GB, 16GB (RDIMM) |
| Expansion Slots | Total PCI/PCI-X/PCI-E Slots: 5 Slot Location 1: 1 * PCI-E x8 (Gen2 X4/X0 Link, share with additional slot 1) Slot Location 3: 1 * PCI-E x8 (Gen2 X8 Link) Slot Location 4: 1 * PCI-E x8 (Gen2 X8/X0 Link, share with slot 6) Slot Location 6: 1 * PCI-E x16 (Gen2 X16/8 Link.auto switch with slot4) Slot Location 7: 1 * PCI 32bit/33 MHz Additional Slot 1: 1* PIKE Slot for Stroage expansion |
| Storage | SATA Controller: AMD SP5100: 6 SATA2 300MB/s ports SAS Controller: Optional: ASUS PIKE 1064E 4-port SAS RAID card ASUS PIKE 1068E 8-port SAS RAID card ASUS PIKE 1078 8-port SAS HW RAID card ASUS PIKE 6480 8-port SAS RAID card ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card |
| Networking | LAN: 2 * Intel 82574L |
| Graphic | VGA: Aspeed AST2050 8MB |
| Onboard I/O Connectors | 1 x 1394 header 1 x PSU Connector 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector Onboard socket for optional management card 1 Total 5 connectors; 1 * USB connector (Type A USB socket);2 * USB pin header (Up to 4 devices) x USB Connectors 1 x Fan Header 8 * 4pin 2 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header |
| Rear I/O Connectors | 1 x External Serial Port 2 x External USB Port 1 x VGA Port 3 (One for BMC, 2 for LAN) 1 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | Software: ASWM2.0 Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet |
| Monitoring | CPU Temperature FAN RPM |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% (Non condensing) |
| Accessories | Standard Gift Box Pack (1pcs per Carton)
6 x SATA Data Cables 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x User's Guide 2 x Thermal sensor cable Standard Bulk Pack (10pcs per Carton) 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x User's Guide |
| Note | *Refer to ASUS Server AVL for latest update |
