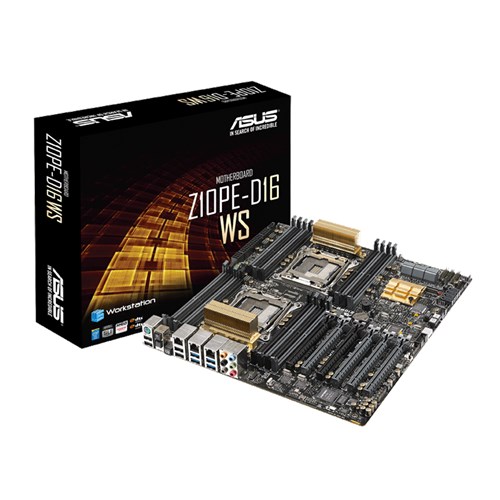

Z10PE-D16 WS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | Extended ATX (SSI EEB) |
| 製品説明 |
製品仕様
| CPU | Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Intel® C612 PCH |
| Memory | 16 x DIMM, Max. 1024GB, DDR4 1866*/2400/2133/1600 MHz RDIMM, LR-DIMM Memory *1 Quad Channel Memory Architecture |
| Graphic | ASpeed AST2400 32MB VGA port*2 - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports NVIDIA® 3-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology |
| Expansion Slots | 4 x PCIe 3.0/2.0 x16 (x16 mode) *3 2 x PCIe 3.0/2.0 x16 (x8 mode) *3 |
| Storage | Intel® C612 chipset : 10 x SATA 6Gb/s port(s), gray, *4, 1 x M.2 Socket 3, black, *5, Support Raid 0, 1, 5, 10 |
| LAN | Intel® I210-AT, 2 x Gigabit LAN Controller(s) 1 x Management LAN |
| Audio | Realtek® ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in) Audio Feature : - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Absolute Pitch 192khz/24bit true BD lossless sound |
| USB Ports | Intel® C612 chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) Intel® C612 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) |
| Workstation Feature | 6 x PCIe x 16 slot(s) ASWM Enterprise ASUS Dr. Power 12K hours Capacitors ProCool Power Connector Q-Code Logger USB BIOS Flashback™ ASUS PIKE SAS upgrade kit(Optional) ASMB8-iKVM Remote Management Tool |
| Special Features | ASUS Digital Power Design : - Industry leading Digital 7 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 2 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 *6 1 x Optical S/PDIF out 1 x USB BIOS Flashback® Button(s) 1 x Q-Code Logger button 1 x 8-channel Audio I/O 1 x Management LAN |
| Internal I/O Ports | 1 x AAFP connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x TPM connector(s) 1 x COM port(s) connector(s) 10 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) (7 x 4 -pin) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 2 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s)*6 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 2 x Serial Port header 1 x ASMB8-iKVM connector |
| Accessories | I/O Shield 1 x COM port cable(s) 10 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x 2-port USB 2.0 module(s) 1 x VGA bracket(s) 1 x ASWM Enterprise SDVD 1 x ASMB8 Support DVD |
| BIOS | 128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS Update |
| Operating System | Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 Enterprise SP2 64-bit Windows® 7 32/64-bit Windows® 8.1 64-bit Windows® 8 64-bit |
| Form Factor | EEB Form Factor 12 inch x 13 inch ( 30.5 cm x 33.02 cm ) |
| Weight | Color Box (1-in-1) Net Weight : 1.49 KG Gross Wright : 3.2KG Bulk Pack(5-in-1) Net Weight : 7.45 KG Gross Weight : 9.9 KG |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Note | *1 2133MT/s@1DPC only *2 with bracket *3 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details *4 6 x right angle connectors from SATA controller , 4 x vertical connectors from sSATA controller, LSI MegaRAID only support SATA Controller *5 M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices *6 1 x Chassis intrution (2-pin) |
