生産終了

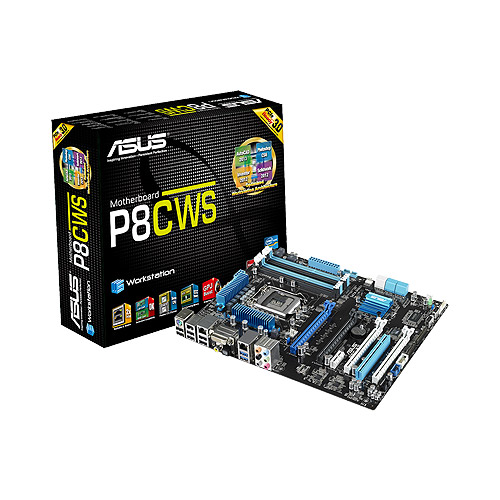

P8C WS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i3 Processors Intel® Socket 1155 for Intel® E3-1200/12x5 v2 processors Supports Intel® 32 nm CPU Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
|---|---|
| Chipset | Intel® C216 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : DVI ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB |
| Multi-GPU Support | Supports AMD Quad-GPU CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® C216 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 |
| LAN | Intel® 82574L, 2 x Gigabit LAN Controller(s) Support Teaming Technology |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel |
| IEEE 1394 | VIA® 6308S controller 2 x IEEE 1394a port(s) |
| USB Ports | Intel® C216 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® C216 chipset : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board) |
| Workstation Feature | 4 x PCIe x 16 slot(s) G.P. Diagnosis Card bundled Quick Gate: 2 x vertical USB 2.0 on board |
| Special Features | ASUS EPU : - EPU - EPU switch ASUS Power Design : - 8 +2 Phase Power Design GPU Boost with switch ASUS Exclusive Features : - MemOK! - AI Suite II - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash ASUS Q-Design : - ASUS Q-Connector |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-I 1 x IEEE 1394a 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 6 x USB 2.0 1 x Coaxial S/PDIF out 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x Vertical USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel connector(s) (1 x 20 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) |
| BIOS | 64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3 |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Operating System | Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
| Note | *1: Supports on Intel® Core™ processor family with Windows 7 operating systems. |
