生産終了

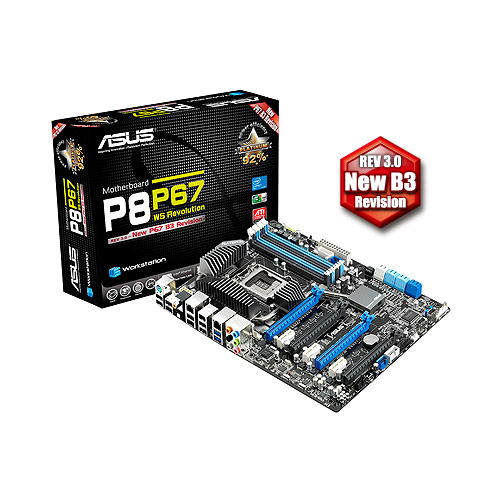

P8P67 WS Revolution
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| CPU | Intel® Socket 1155 Core™ i5 Processor/Core™ i3 Processor/Core™ i7 Processor/ Supports Intel® Turbo Boost Technology 2.0 Support Intel® 32nm CPU LGA1155 socket for Intel® next generation server processor * Refer to www.asus.com for Intel CPU support list |
|---|---|
| Chipset | Intel® P67 Express Chipset ; Nvidia NF200*1 |
| Memory | * Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default. 4 x DIMM, Max. 32 GB, DDR3 1866(O.C.)/2133(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory Dual Channel memory architecture Please refer to www.asus.com or user manual for Memory QVL. |
| Expansion Slots | (@ x16 or x8) x PCIe 2.0 x16 2 2 x PCIe 2.0 x16 (@ x8) 3 x PCIe 2.0 x 1 (@ x1) |
| VGA | CUDA support:
Up to 4 NVIDIA Tesla GPUs |
| Multi-GPU Support | Supports NVIDIA® Geforce 3-Way/2-Way SLI™ techonology
Supports ATI® CrossFireX™ technology, up to Quad CrossFireX™ |
| Storage | Intel® P67 Express Chipset 2 xSATA 6.0 Gb/s ports (gray) 4 xSATA 3.0 Gb/s ports (blue) Intel® Rapid Storage Technology Support RAID 0,1,5,10 Marvell® 9128 PCIe SATA6Gb/s controller 2 xSATA Gb/s ports(navy blue) Support SATA RAID 0 and 1 |
| LAN | 1 x Intel® 82574L GbE LAN 1 x Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY) - Support teaming function |
| Audio | ALC889 8-Channel High Definition Audio CODEC - Multi-Streaming - Jack-Sensing - Front Panel Jack-Retasking - Optical/Coxial S/PDIF out ports at back I/O - ASUS Noise-Filer |
| IEEE 1394 | VIA VT6315N controller supports 2 x 1394a ports |
| USB | NEC USB 3.0 controller - x USB 3.0/2.0 ports (Blue, at back panel) 2 Intel® P67 Express Chipset - x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel) 14 |
| ASUS Unique Features | - ASUS Digi+ VRM Utility ASUS Exclusive Features - MemOK! - AI Suite II - ASUS EFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution - ASUS Fanless Design: Heat-pipe solution - ASUS Fan Xpert ASUS EZ DIY - ASUS Q-Shield - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM |
| ASUS Workstation Special Features | 4 PCIe x 16 slots
G.P. Diagnosis Card bundled Quick Gate:2 vertical USB 2.0 on board ASUS SASsaby series Cards support ASUS WS Diag. LED ASUS WS Heartbeat |
| Back Panel I/O Ports | 2 x USB 3.0/2.0 1 x PS/2 Keyboard/Mouse Combo port 1 x S/PDIF Out (Optical and Coxial) 1 x IEEE 1394a 2 x LAN(RJ45) port 8 x USB 2.0/1.1 8 -Channel Audio I/O |
| Internal I/O Connectors | 1 x Mem OK! Button 8-pin ATX +12V Power connector 2 x USB 2.0/1.1 connector(s) support additional 4 USB ports 1 x COM port connector 1 x TPM connector 1 with PWM control x CPU Fan connector 3 with Q-fan control x Chassis Fan connector 1 x Power Fan connector 1 x S/PDIF Out connector 24-pin ATX Power connector 4-pin EZ_PLUG Power connector AAFP connector 2 x USB 2.0/1.1 vertical ports 20-pinfront panel connector |
| BIOS | 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Manageability | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
| O/S Compatibility | Win7 32/64 bit,Vista 32/64 bit and WinXP 32/64bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
