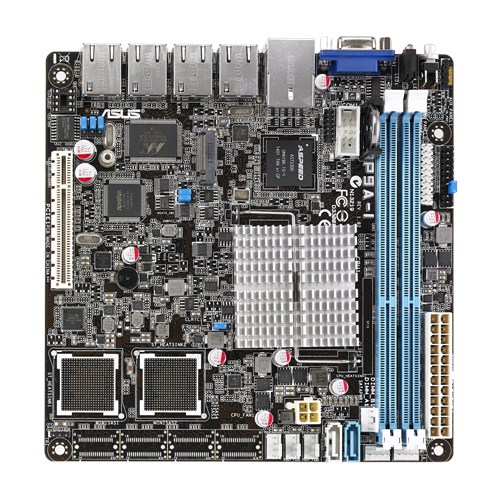

P9A-I/C2550/4L
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1283 |
| マザーボードサイズ | Mini-ITX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket C2550 Intel® ATOM™ C-Series FCBGA Processor(Avoton) |
|---|---|
| Memory | Total Slots : 2 (2 Channels) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3 1600/1333 UDIMM with ECC Memory Size : 16GB, 8GB, 4GB, 2GB UDIMM |
| Expansion Slots | Total Slot : 1 Slot Location 7 : PCI-E x8 (Gen2 X4 Link) |
| Form Factor | Mini ITX (6.7" x 6.7") |
| ASUS Features | FAN speed control ASWM Enterprise |
| Storage | SATA Controller : 2 x SATA3 6Gb/s ports or 1 x SATA3 6Gb/s ports + 1 x M.2 connector |
| Graphic | Aspeed AST2300 with 32MB VRAM |
| On Board I/O | 1 x PSU Power Connector (24-pin ATX power connector + 4-pin ATX 12V power connector) 5 x Fan Header , 4pin 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x SATA DOM Power connector 1 x M.2 connector |
| Back I/O Ports | 2 x USB 2.0 1 x VGA Port 4 x GbE LAN + 1 x Mgmt LAN |
| Management Solution | ASWM Enterprise ASMB7-iKVM for KVM-over-Internet |
| Regulatory Compliance | CE, FCC(Class B) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Standard Gift Box Pack (1pcs per Carton) 3 x Support CD 1 x I/O shield 2 x SATA 6G cables 1 x COM port cable Standard Bulk Pack (10pcs per Carton) 3 x Support CD 1 x I/O shield |
| Product SKUs | Standard Gift Box Pack with ASMB7-iKVM Standard Bulk Pack with ASMB7-iKVM |
| Monitoring | CPU Temperature Fan RPM |
