生産終了

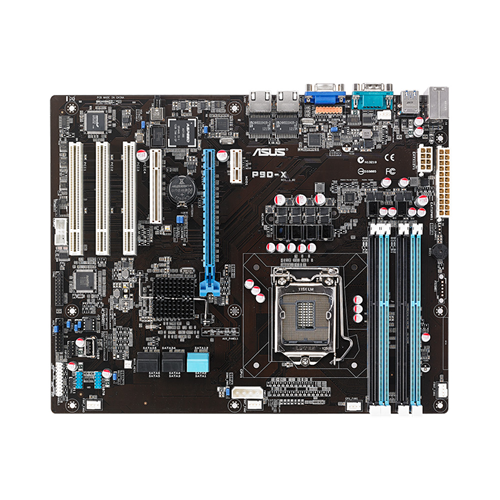

P9D-X
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1150 (Socket H3) |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1150 Intel® Xeon® processor E3-1200 v3 product family 4th Gen Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C222 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3 1600/1333 UDIMM with ECC Memory Size : 8GB, 4GB, 2GB |
| Expansion Slots | Total Slot : 6 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI 32bit/33MHz Slot Location 4 : PCI-E x8 (Gen2 X4 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link) Slot Location 7 : MIO Slot for Audio card Follow SSI Location# |
| Form Factor | ATX (12"x9.6") |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
| Storage | SATA Controller : Intel® C222 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
| Networking | 2 x Intel® I210AT |
| Graphic | Aspeed AST1300 with 64MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB 2.0 pin header , Up to 4 Devices 1 x Internal A Type USB Port*1 5 x Fan Header , 4pin 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x SATA DOM Power connector*2 1 x VGA Header |
| Back I/O Ports | 1 x External Serial Port 4 x External USB Port (2 x USB 3.1 Gen 1, 2 x USB 2.0) 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | Software: ASWM Enterprise |
| Regulatory Compliance | CE, C-Tick, FCC(Class B) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Standard Gift Box Pack 1 x User Guide 2 x Support CD 1 x I/O shield 2 x SATA 6G cables + 4 x SATA 3G cables 1 x USB to SATA DOM Power cable 1 x Plate for LGA1150 Standard Bulk Pack 1 x User Guide 2 x Support CD 1 x I/O shield 1 x Plate for LGA1150 |
| Product SKUs | Standard Gift Box Pack Standard Bulk Pack |
| Monitoring | CPU Temperature Fan RPM |
| Note | *1 1 x USB 2.0 connector *2 4-pin power connector |
